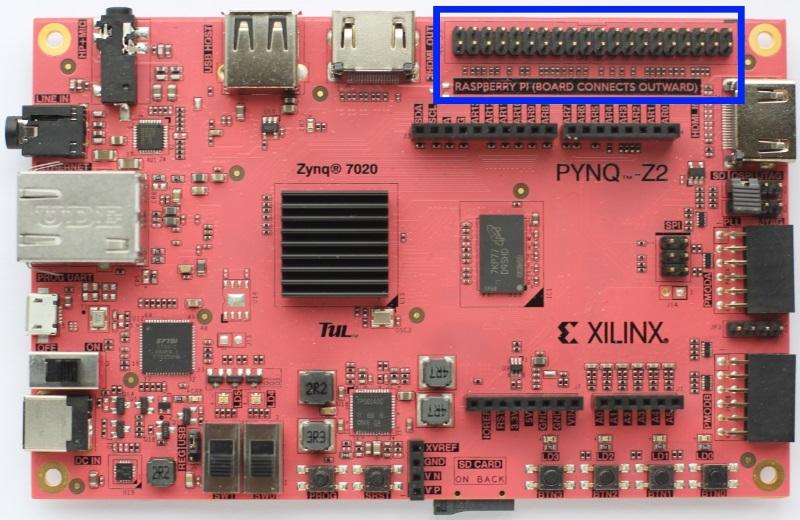

TUL PYNQ-Z2 1M1-M000127DEV FPGA Board
TUL PYNQ-Z2 1M1-M000127DEV FPGA Board
Regular price
Rs. 18,500.00
Regular price
Sale price
Rs. 18,500.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

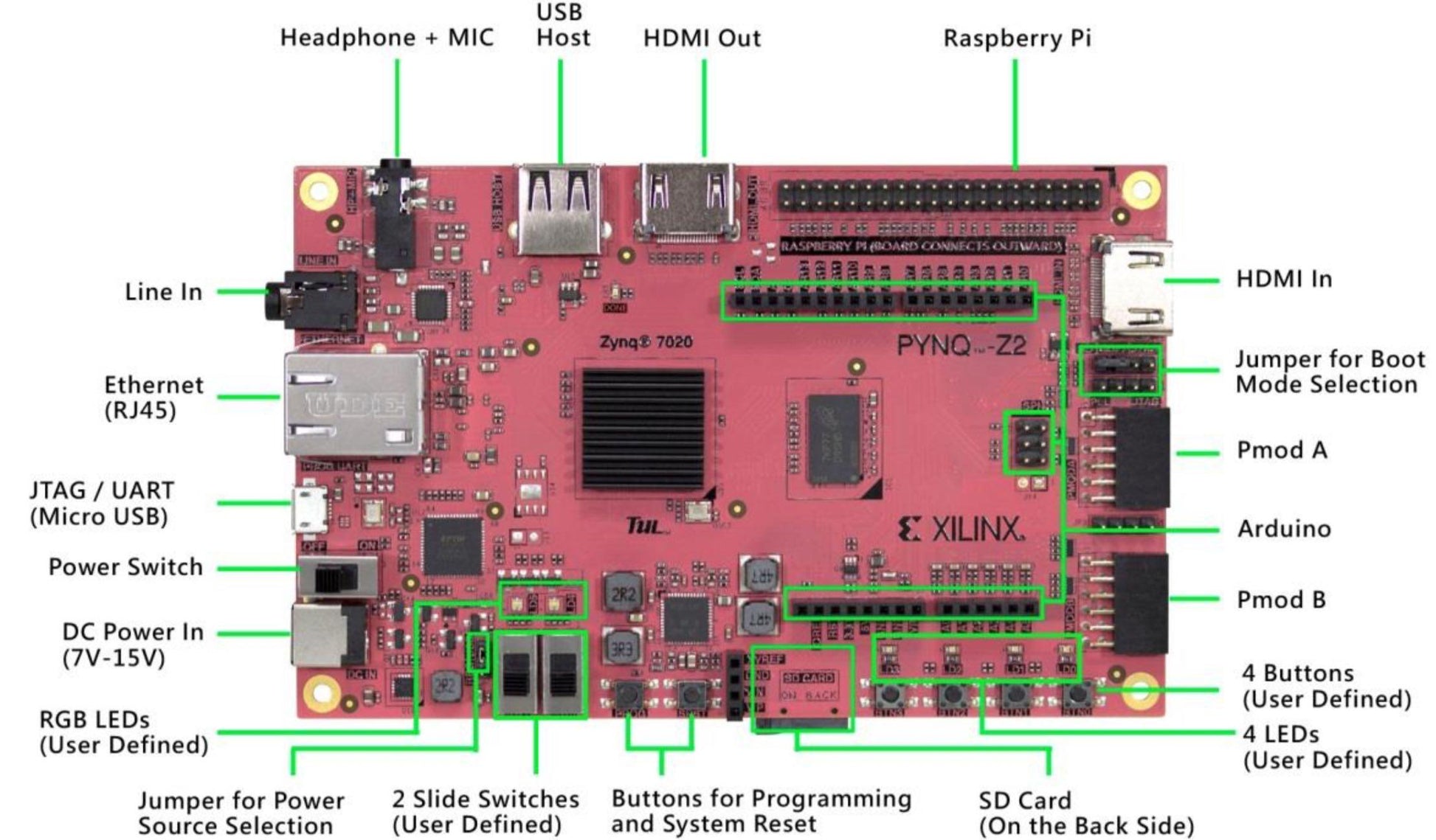

- Python-based FPGA development (PYNQ framework)

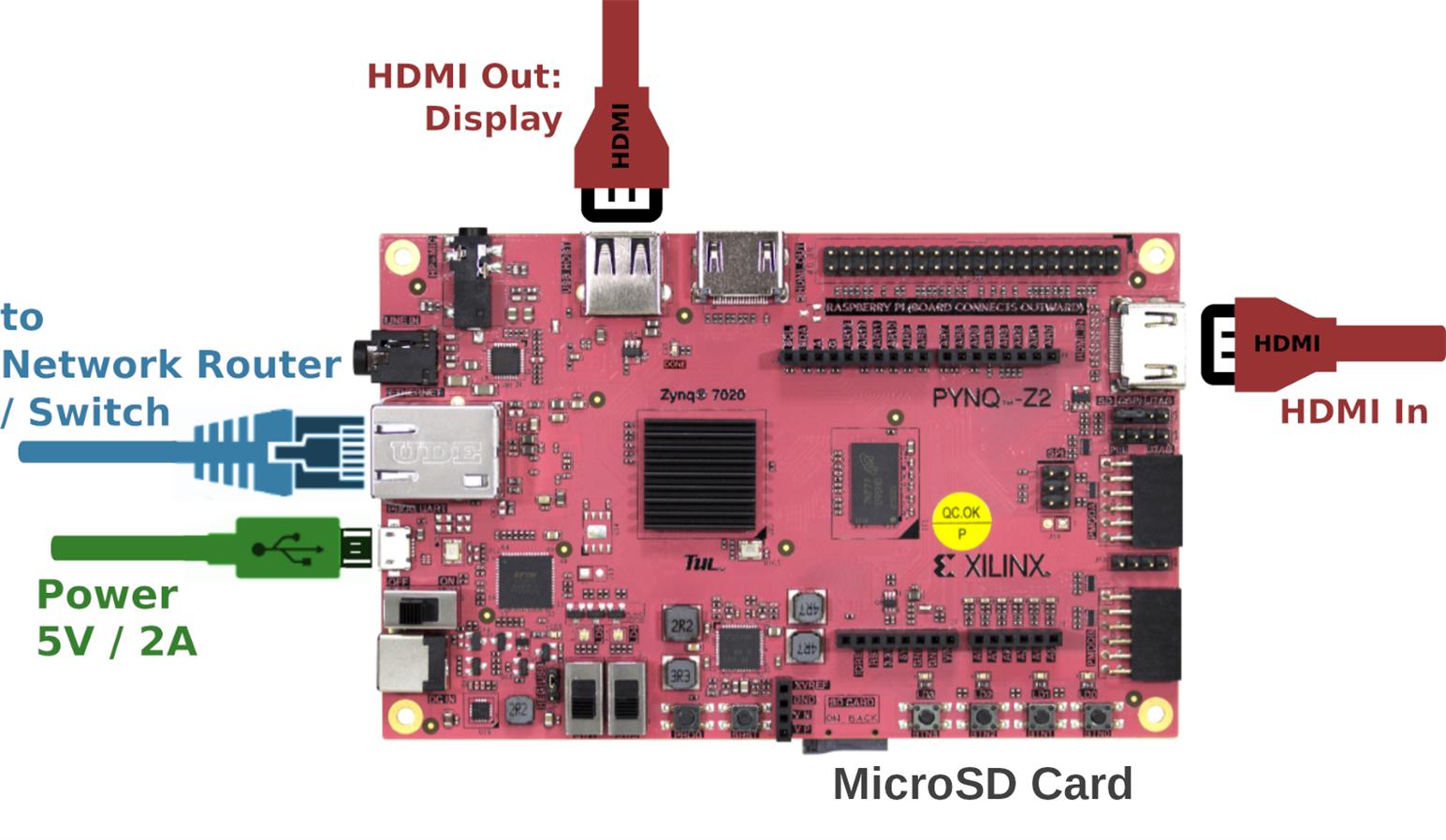

- HDMI Input + Output (video processing)
- Audio codec (line-in, headphone)

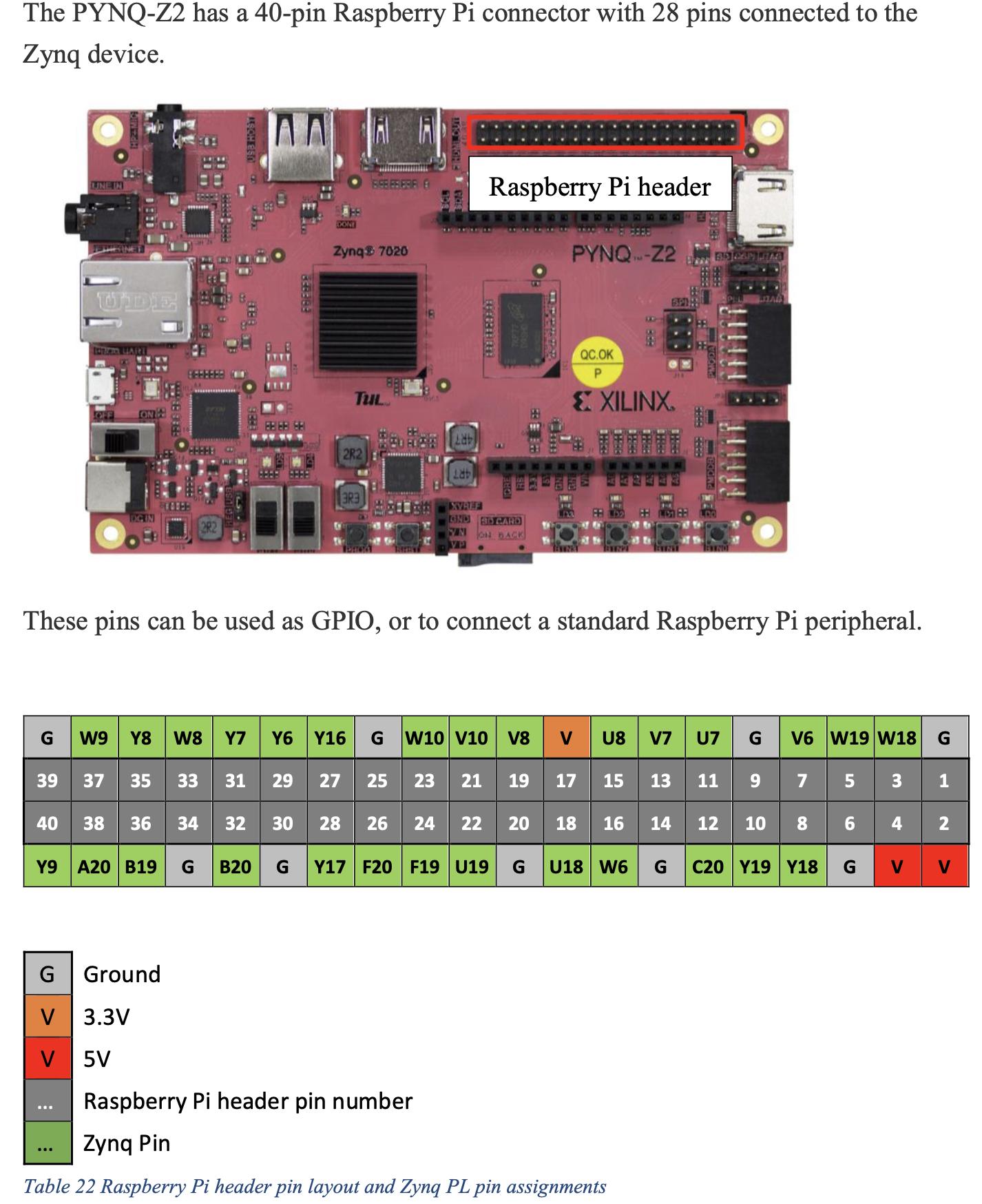

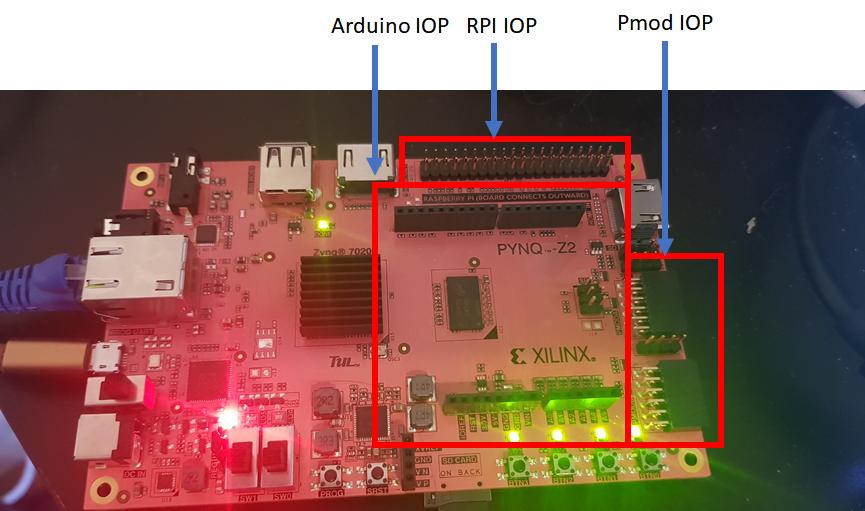

- Arduino + Raspberry Pi headers
- 2 × PMOD connectors

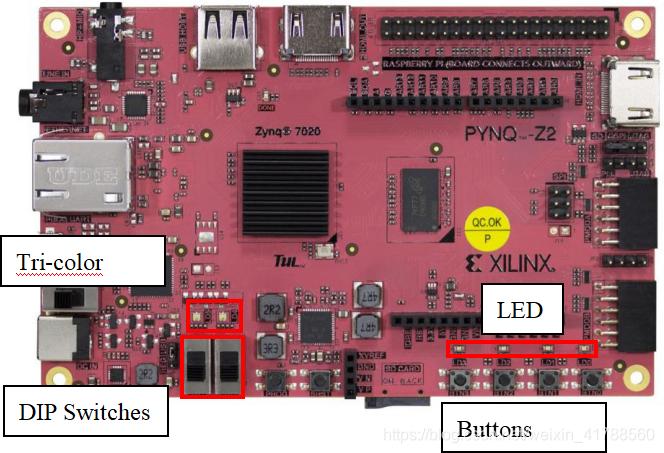

- Onboard switches, buttons, LEDs
| Parameter | Details |
|---|---|
| SoC | Xilinx Zynq-7020 (XC7Z020) |
| CPU | Dual-core ARM Cortex-A9 @ ~650 MHz |
| FPGA Logic | Artix-7 class programmable logic |
| DSP Slices | 220 |
| Block RAM | ~630 KB |
| RAM | 512 MB DDR3 |
| Storage | MicroSD + 16 MB QSPI Flash |
| Networking | Gigabit Ethernet |
| USB | USB host + programming |
