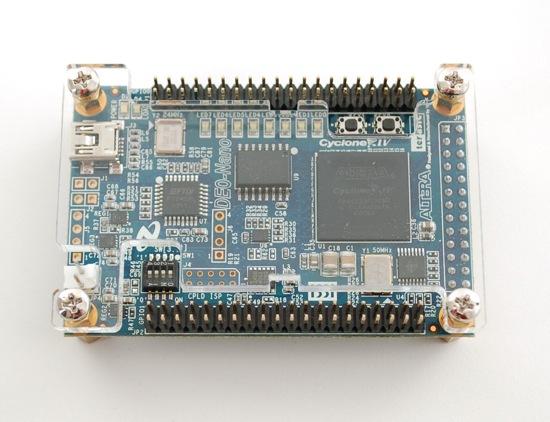

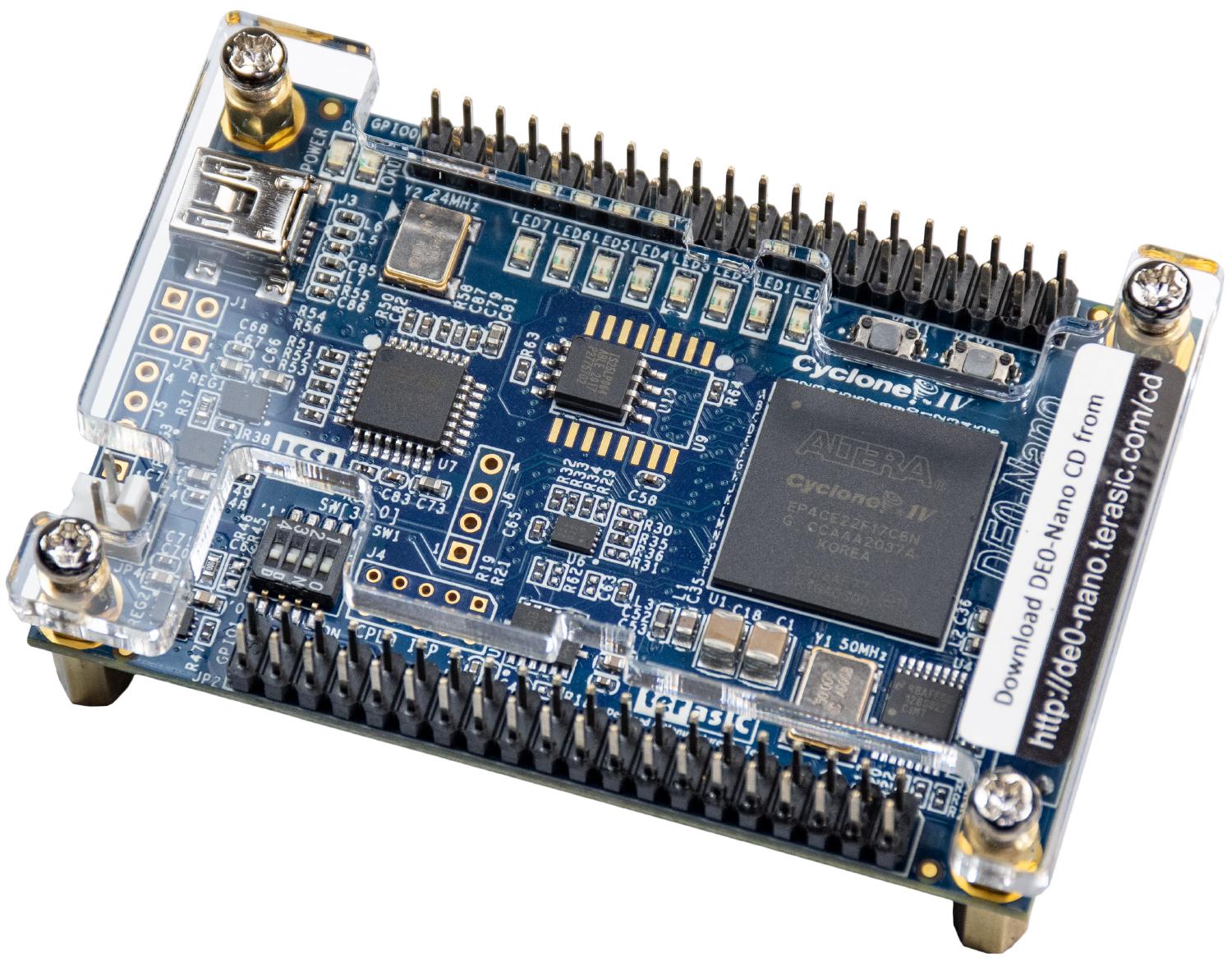

TERASIC TECHNOLOGIES P0082 Development Kit, Altera Cyclone IV FPGA , DE0-Nano, 2x GPIO Headers, 32MB SDRAM, Accelerometer
TERASIC TECHNOLOGIES P0082 Development Kit, Altera Cyclone IV FPGA , DE0-Nano, 2x GPIO Headers, 32MB SDRAM, Accelerometer
Regular price
Rs. 16,000.00
Regular price
Sale price
Rs. 16,000.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

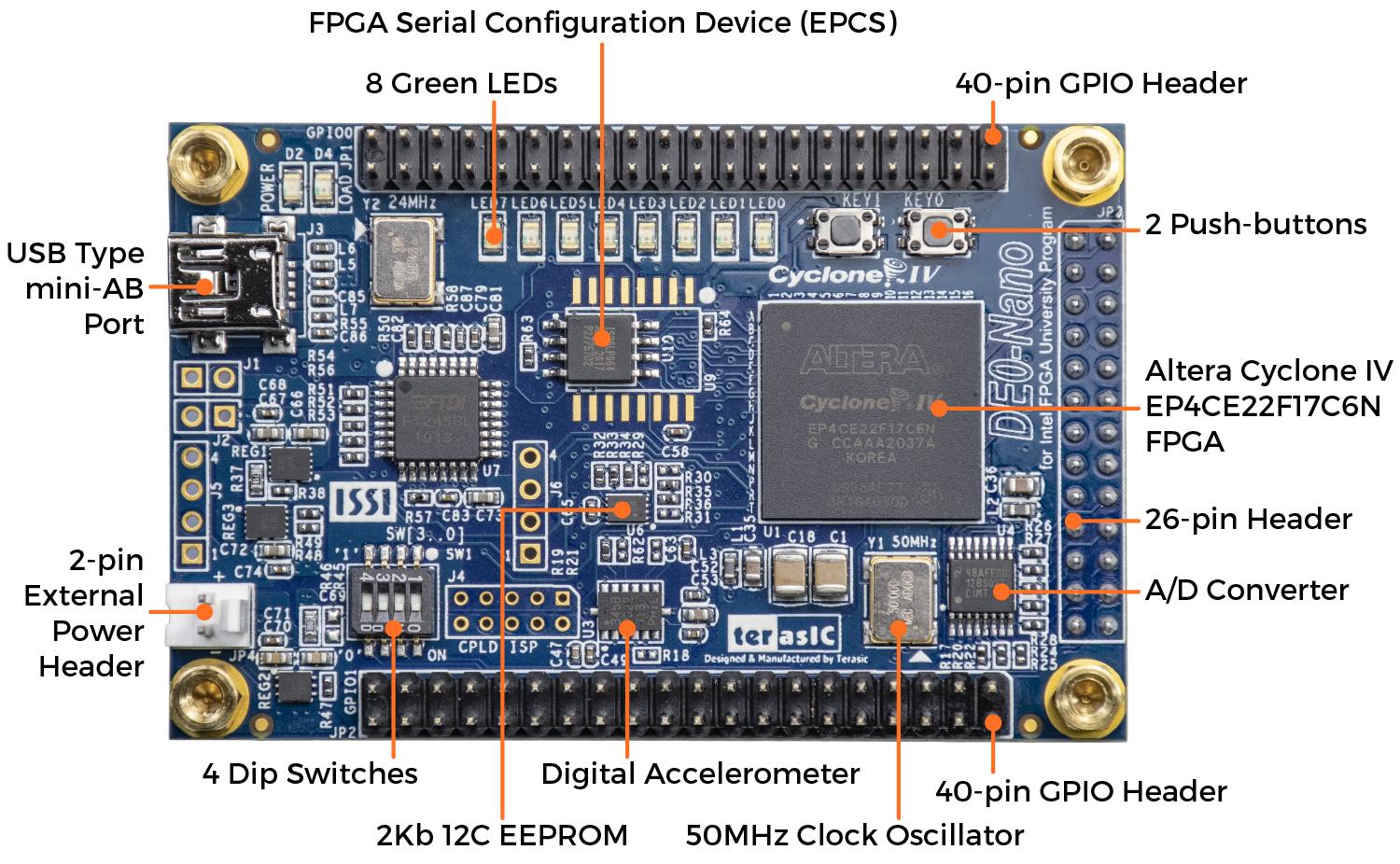

- 32 MB SDRAM onboard → enables complex designs
- 3-axis accelerometer (ADXL345)

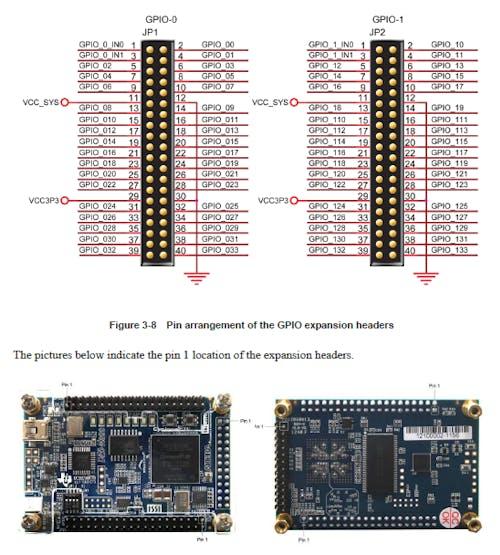

- 2 × 40-pin GPIO headers (80 I/O)
- Onboard USB-Blaster (programming)
- EEPROM + Flash memory
- Compact form factor
| Parameter | Details |
|---|---|
| FPGA | Cyclone IV EP4CE22 |
| Logic Elements | ~22,320 |
| Embedded Memory | ~594 Kbits |
| SDRAM | 32 MB |
| Flash | 2 MB configuration flash |
| Clock | 50 MHz oscillator |
| GPIO | 2 × 40-pin headers |
