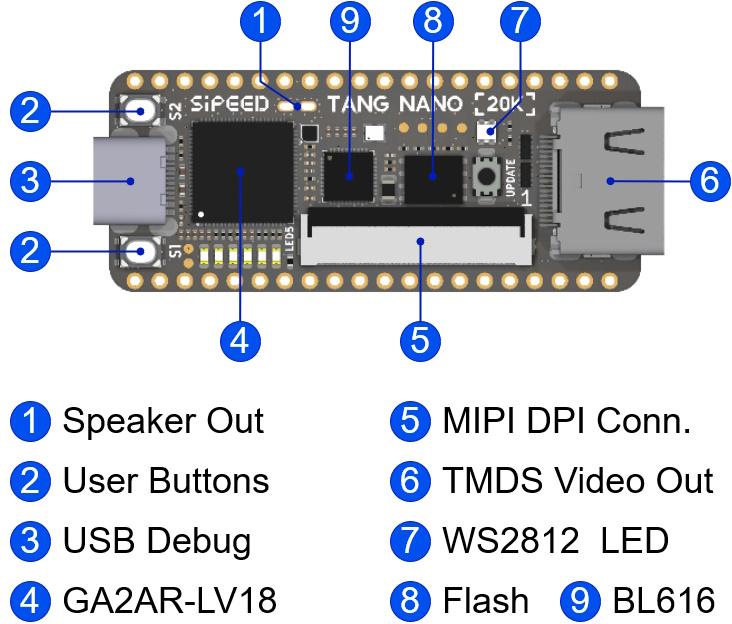

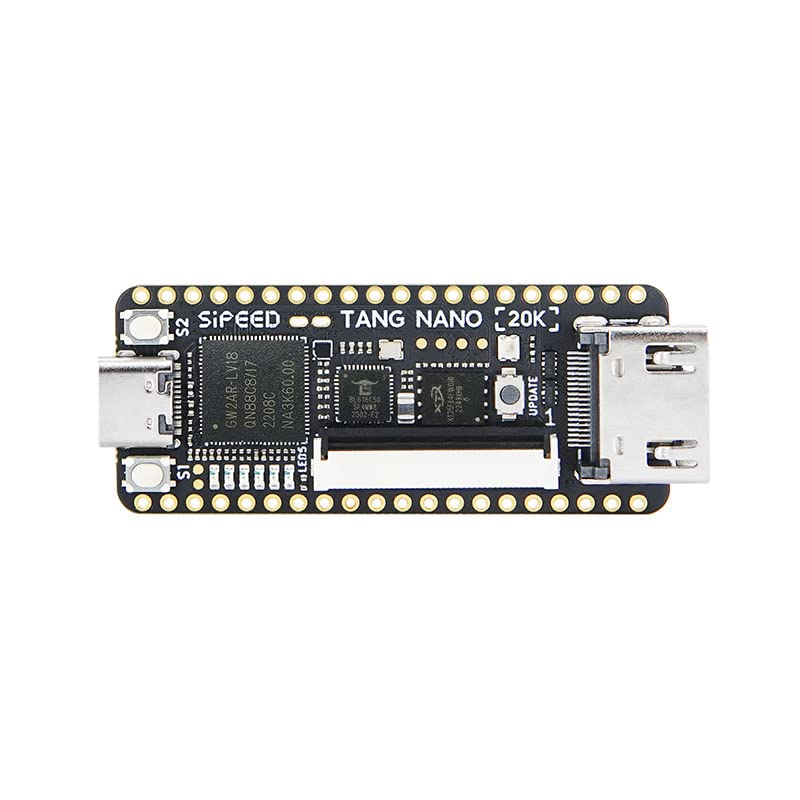

Sipeed Tang Nano 20K FPGA devlopment board
Sipeed Tang Nano 20K FPGA devlopment board
Regular price
Rs. 3,600.00
Regular price
Sale price
Rs. 3,600.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

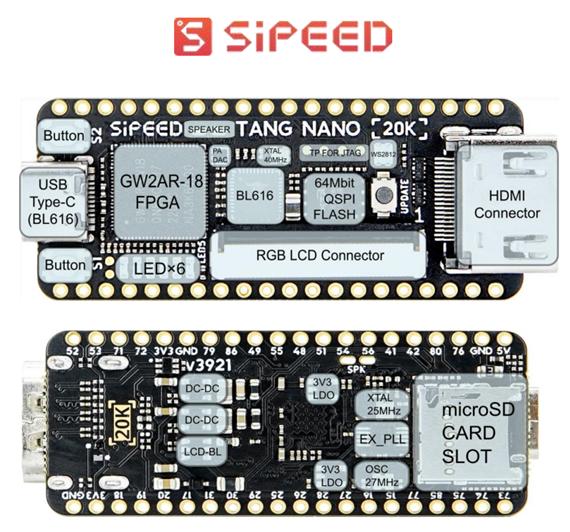

| Parameter | Details |
|---|---|
| FPGA Chip | Gowin GW2AR-18 (QN88) |
| Logic Cells | 20,736 LUT4 |
| Flip-Flops | 15,552 |
| RAM | 64Mbit SDRAM + 828Kbit BRAM |
| Flash | 64Mbit QSPI |
| Clock | 27 MHz + MS5351 clock generator |
| USB | USB-C (power + programming) |
| Debugger | Onboard BL616 (JTAG + UART) |
| Size | ~22.5 × 54 mm |
- 20K LUT FPGA → significantly more powerful than entry boards
- Onboard programmer (no USB Blaster needed)
- HDMI output + RGB LCD interface
- External SDRAM support → enables larger designs
- Integrated USB-to-UART + JTAG (BL616)
- Compact & breadboard compatible
