BE Components

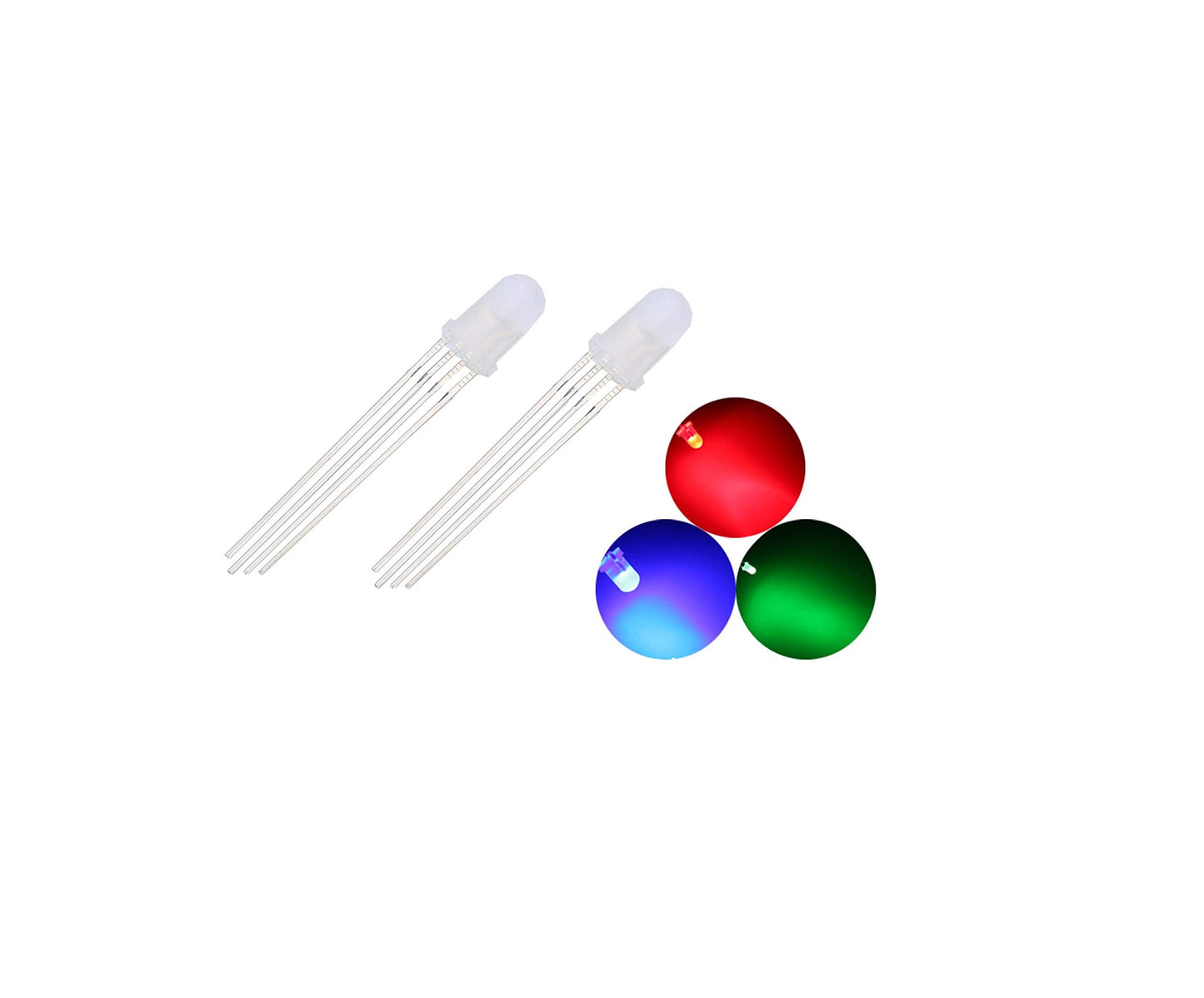

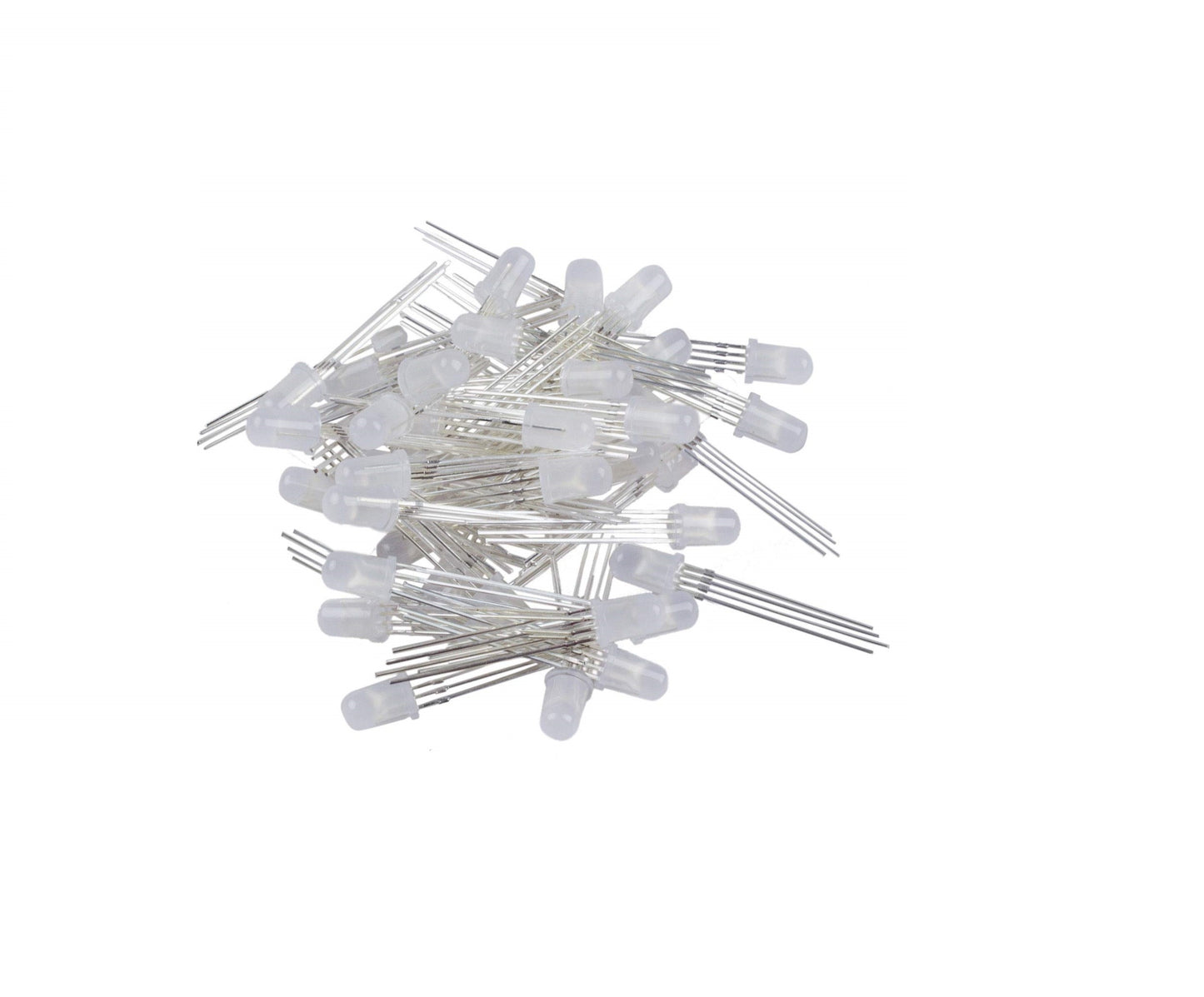

RGB LED Common Anode 5mm

RGB LED Common Anode 5mm

Regular price Rs. 4.00
Regular price Sale price Rs. 4.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Specification:-
  • LED Type:-  RGB LED
  • Type:-  Common Anode
  • No. of pins:-  4
  • Input Type Voltage:-  2.0-2.2V(Red) / 2.2-2.6V(Green) / 3.2-3.4(Blue)
  • Diameter:-  5 mm
  • RGB Wavelength: 625-630(Red) / 517-520(Green) / 465-470(Blue) nm
Description:-
  • Diffused RGB Common Anode LED makes some beautiful colors with this diffused 5mm tri-color LED with separate red, green and blue LED chips inside! They make a nice indicator, and fun to color-swirl. We like diffused RGB LEDs because they color mix inside instead of appearing as 3 distinct LEDs.
  • These are Common-Anode type which means you connect one pin to 5V or so and then tie the other three legs to ground through a resistor.
