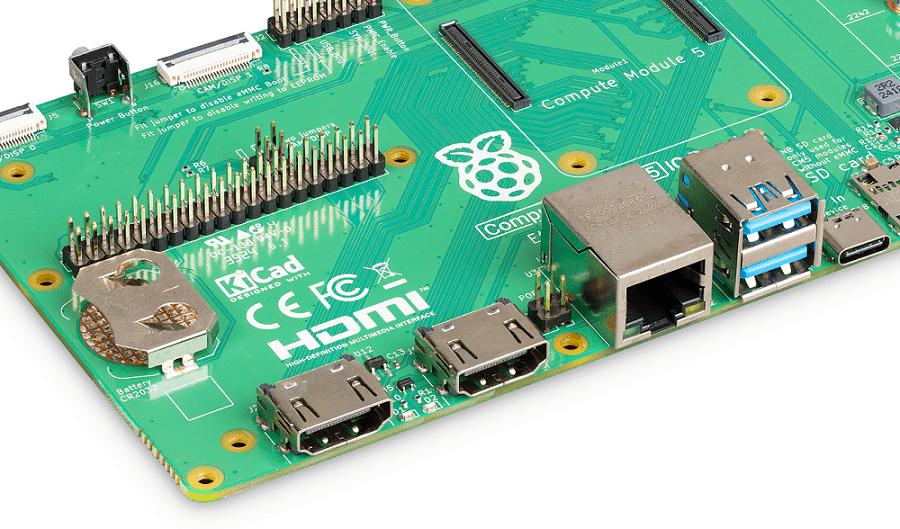

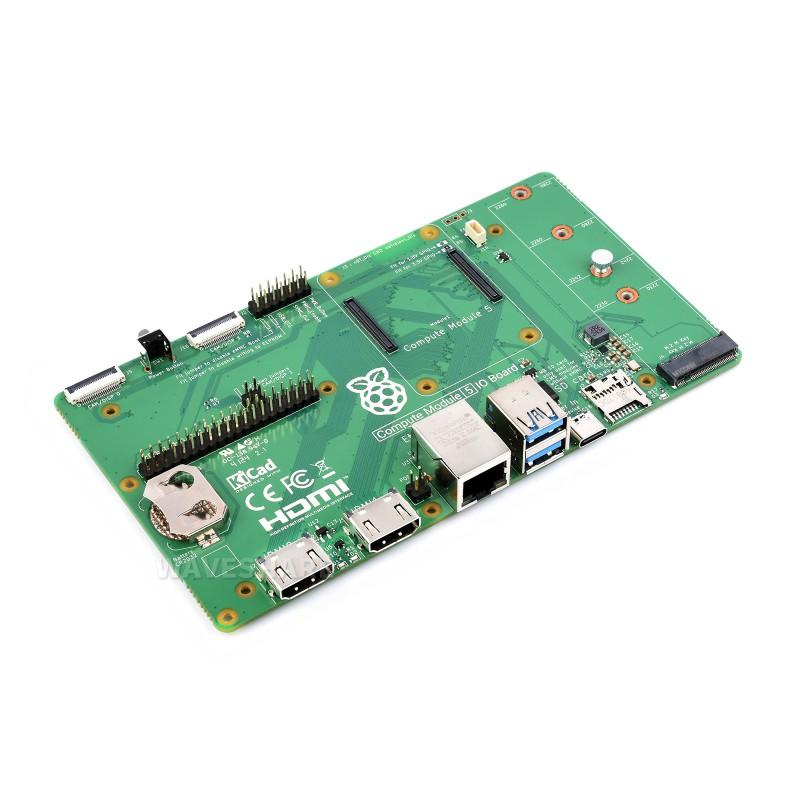

Raspberry Pi Compute Module 5 IO Board
Raspberry Pi Compute Module 5 IO Board
Regular price
Rs. 2,500.00
Regular price
Sale price
Rs. 2,500.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

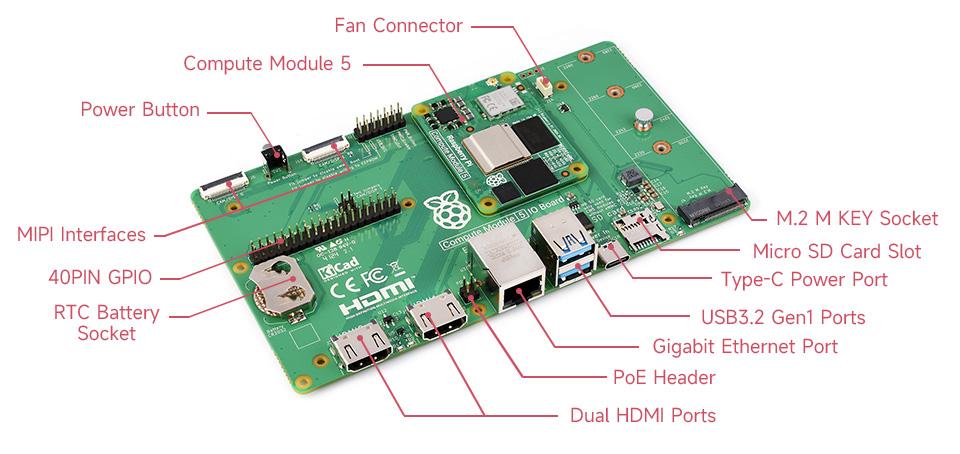

| Parameter | Details |
|---|---|
| Form Factor | 160 × 90 mm |
| Power Input | 5V via USB-C (up to 5A) |
| GPIO | 40-pin standard header |
| USB | 2 × USB 3.0 + 1 × USB-C (flash/debug) |
| Display | 2 × Full-size HDMI 2.0 |
| Camera/Display | 2 × MIPI CSI/DSI (22-pin) |
| Networking | Gigabit Ethernet (PoE support) |

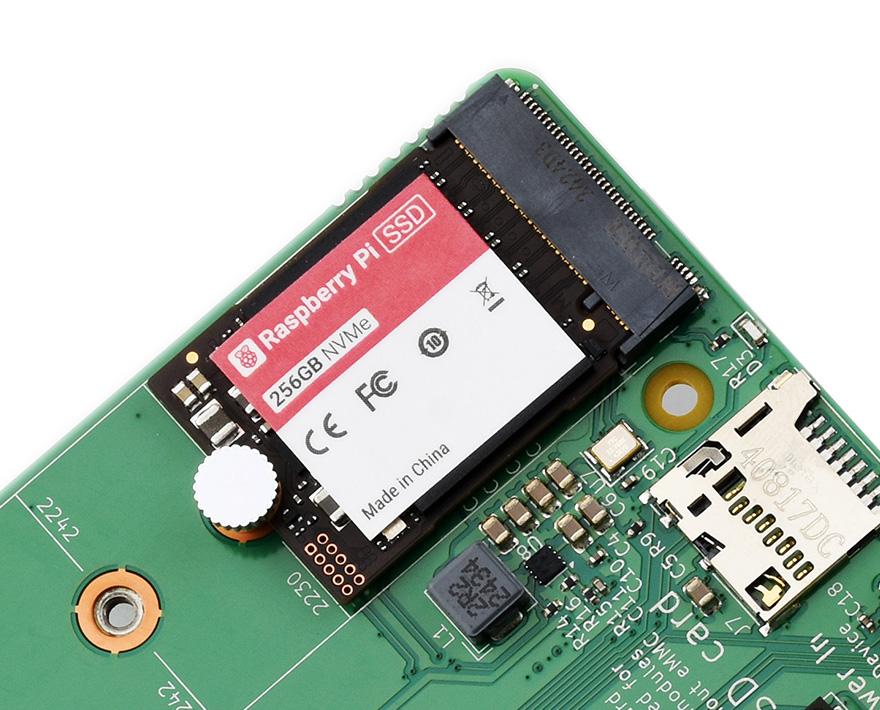

| Storage Expansion | M.2 M-key PCIe (NVMe SSD support) |
| Cooling | 4-pin fan header |
| Extra | RTC battery socket, power button |
