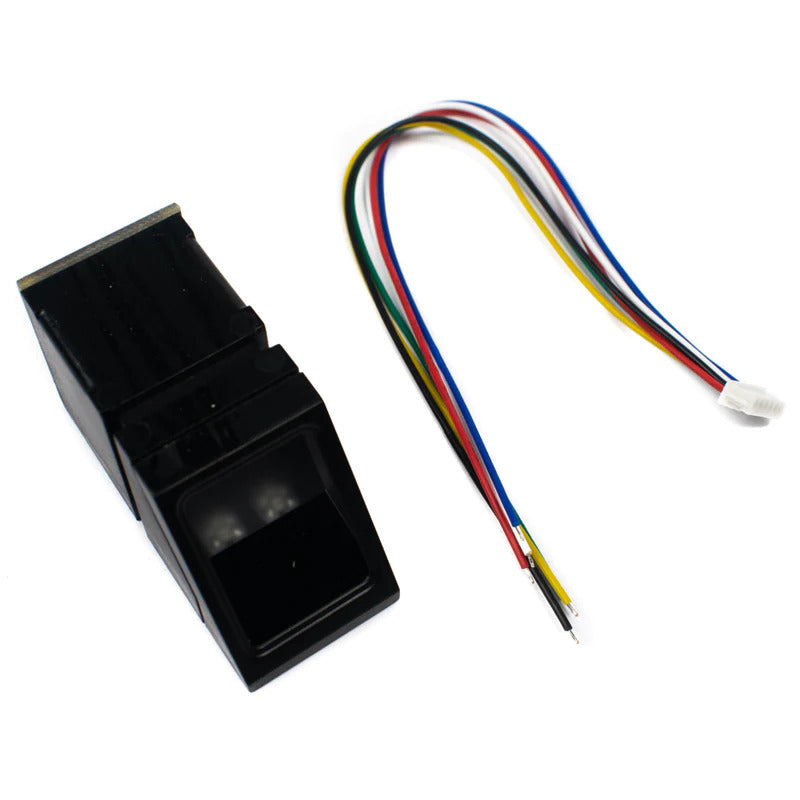

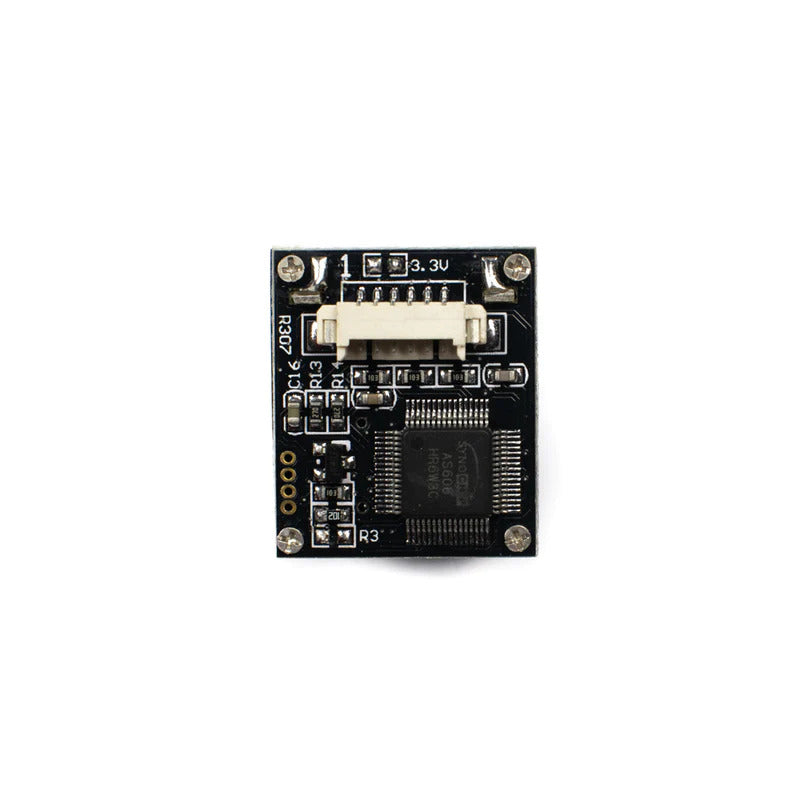

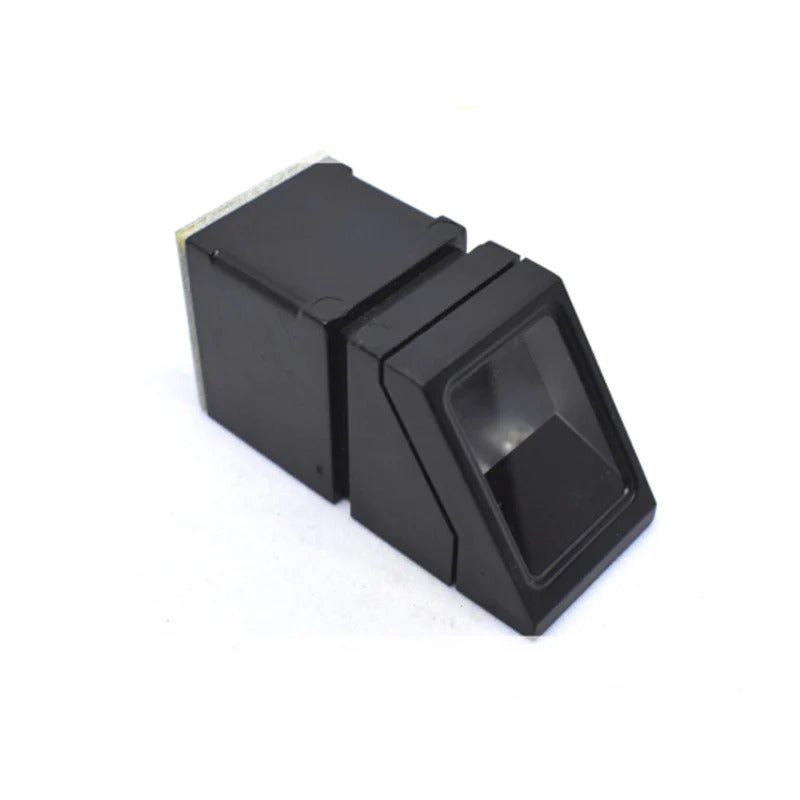

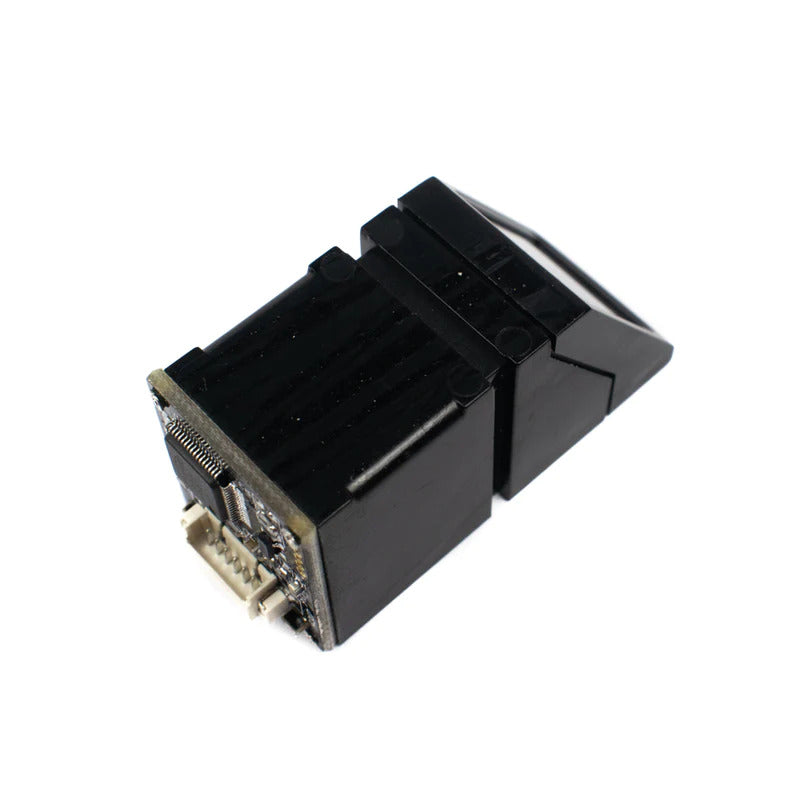

R307 Optical Fingerprint Reader Sensor
R307 Optical Fingerprint Reader Sensor
Regular price
Rs. 1,089.00
Regular price
Sale price
Rs. 1,089.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATION
Operating Voltage | 3.8-6 volts |
Operating Current | < 120 mA |
Peak Current | < 150 mA |
Matching Mode | 1:1 and 1:N |
Character File Size | 256 bytes |
Template size | 512 bytes |
Storing Capacity | 1000 |
Search time | < 1 second |
Window Dimension | 18*22 mm |
Interface Type | UART (TTL Logic Level) |
Baud Rate | (9600*N) bps |
Security Level | 5 (1,2,3,4,5) |
Description
- This is the R307 Optical Fingerprint Reader Sensor Module. R307 fingerprint module is a fingerprint sensor with a TTL UART interface for direct connections to microcontroller UART or to PC through MAX232 / USB-Serial adapter. The user can store the fingerprint data in the module and can configure it in 1:1 or 1: N mode for identifying the person.
- It's a Finger Print Sensor Module R307. R307 is a finger print sensor module with TTL UART interface. The user can store the finger print data in the module and can configure it in 1:1 or 1: N mode for identifying the person. The finger print module can directly interface with 3v3 or 5v Microcontroller. A level converter (like MAX232) is required for interfacing with PC.
