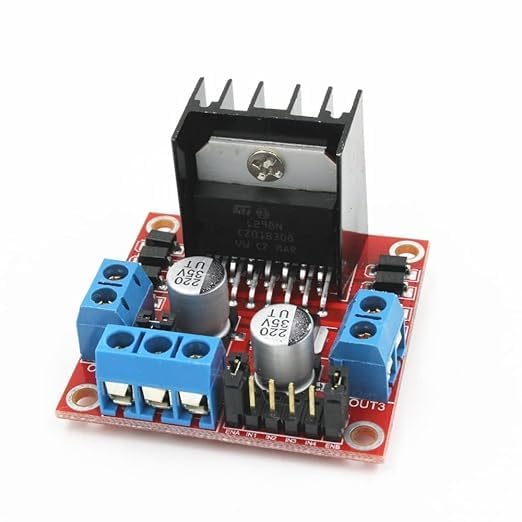

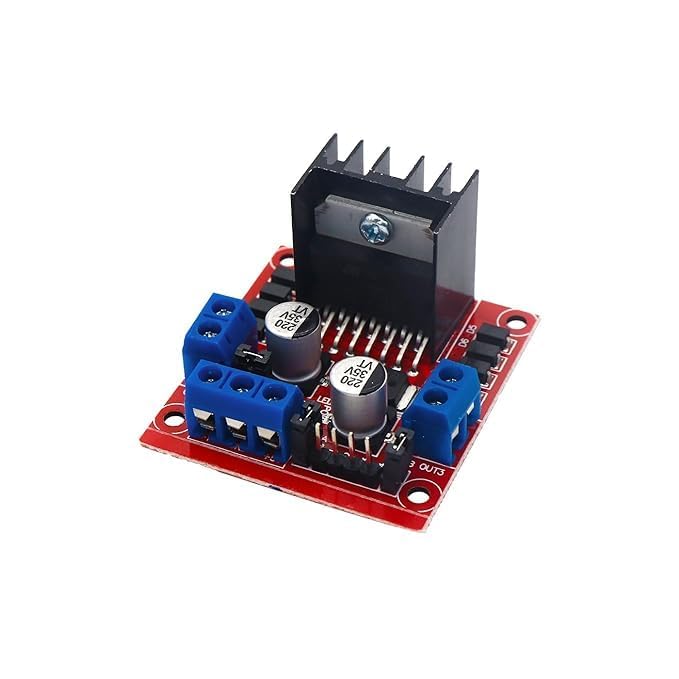

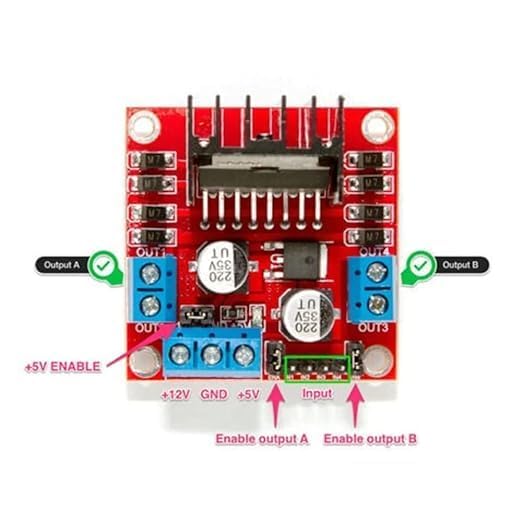

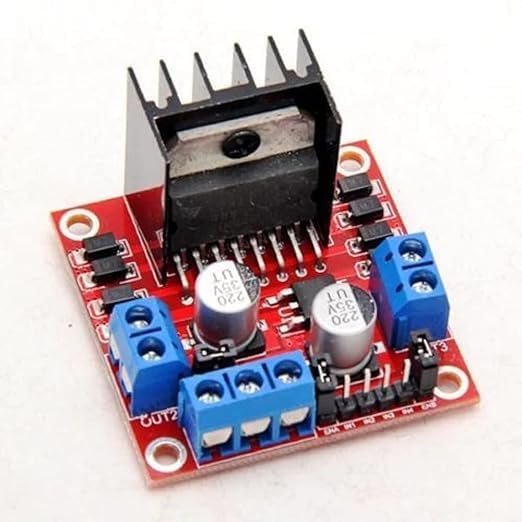

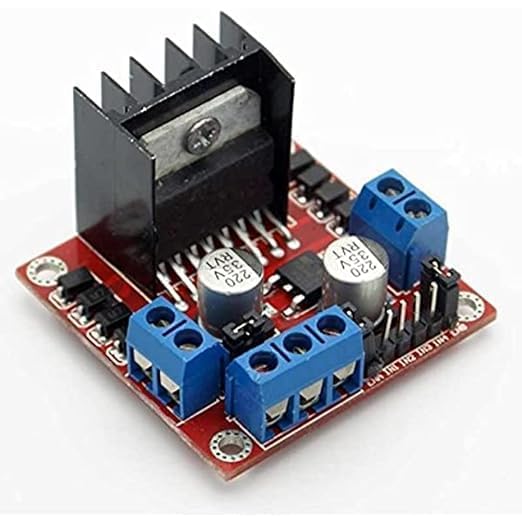

L298N Motor Driver Shield Module
L298N Motor Driver Shield Module
Couldn't load pickup availability
It's a L298 2A dual motor driver module with PWM controller. This is a High power motor driver perfect for driving DC motor and stepper motor. It can Can control up to 4 DC motor and 2 DC motors with Directions and speed control. This L298 contains a H-Bridge circuit which can drive a current in either polarity and be controlled by Pulse Width Modulation (PWM). It's Ideal for robotic applications and well suited for connection to a microcontroller requiring just a couple of control lines per motor.
Specifications:
| Logic Voltage | 4.5-7 volts |
| Motor Drive Voltage | 5-40 volts (Lower value Depends on ViH |
| Total DC current | 4 A |
| Logic "0" | 0-1.5 volts |
| Number of channels | 2 |
| Overcurrent and Thermal Protection | Yes |
