HCSR04 Ultrasonic Sensor
HCSR04 Ultrasonic Sensor
Couldn't load pickup availability
SPECIFICATIONS
Type | Universal IR Infrared Receiver TL1738 |
Working voltage | DC 5 V |
Working Current | 15 mA |
Min Range | 2 cm |
Max Range | 400 cm |
Accuracy | 3 mm |
Measuring Angle | 15 degree |
Operating Frequency | 40 kHz |
Description
-

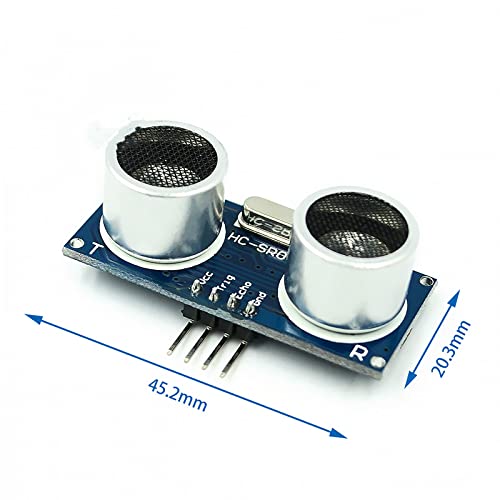

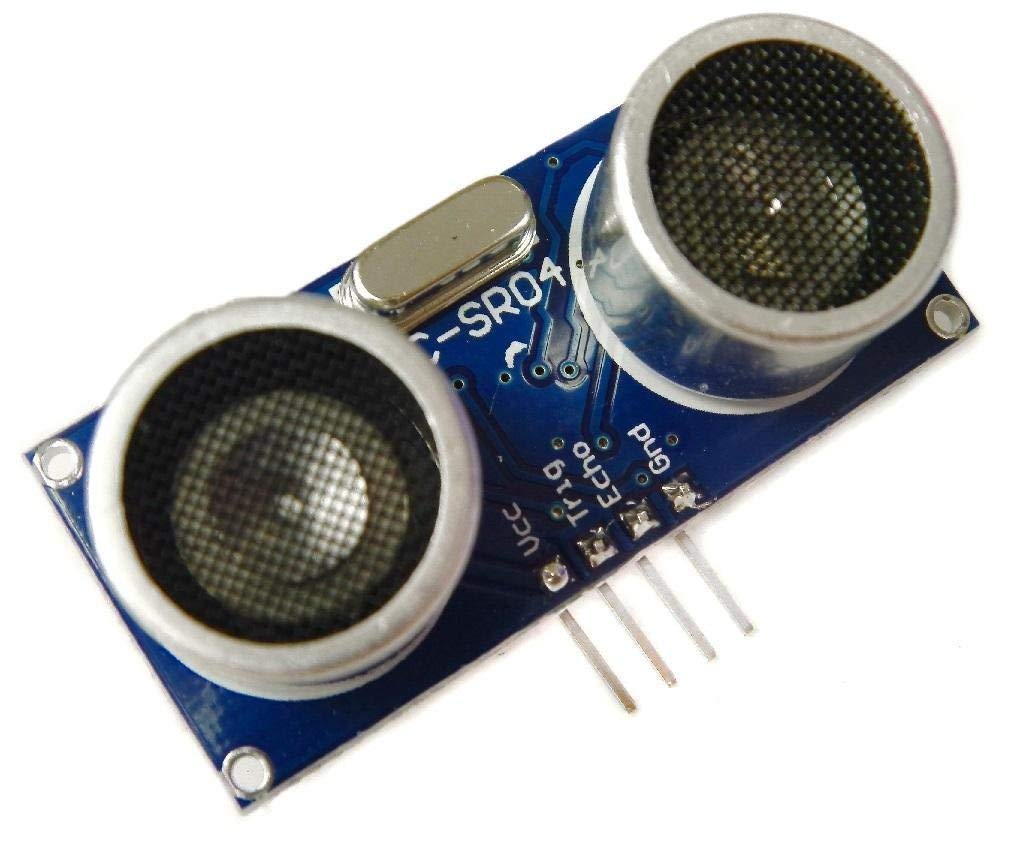

The module has two eyes like projects in the front which forms the Ultrasonic transmitter and Receiver. The HC-SR04 Ultrasonic Sensor uses sonar to determine the distance to an object like bats or dolphins do.

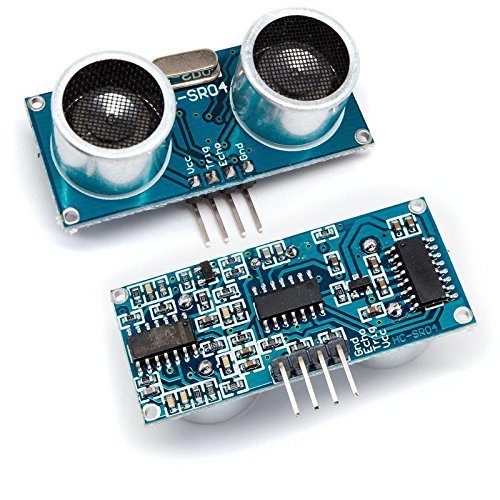

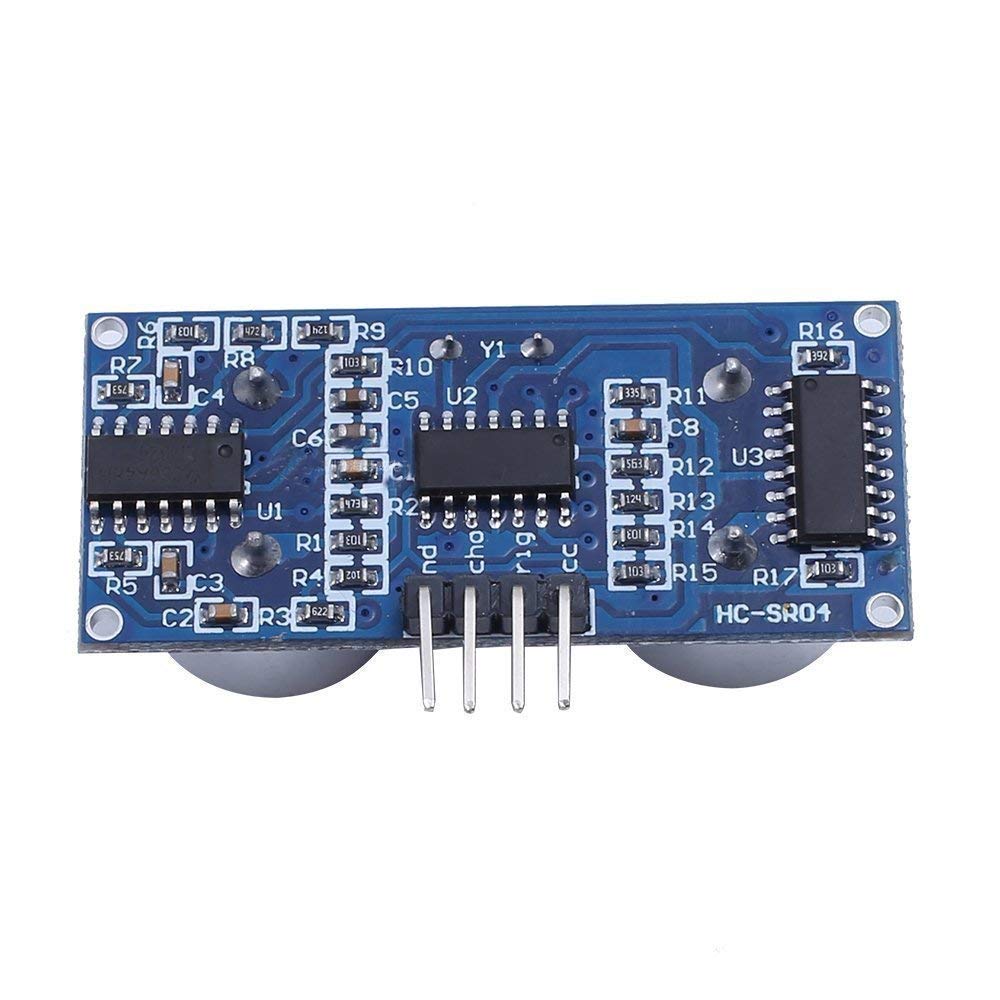

This Ultrasonic Sensor module is a transmitter, a receiver, and a control circuit in one single pack!! It has very handy and compact construction. It offers excellent range accuracy and stable readings in an easy-to-use package. Its operation is not affected by sunlight or black material like Sharp rangefinders are (although acoustically soft materials like cloth can be difficult to detect).
- This module operates on 5 V DC voltage and 15 mA current. The operating frequency for the sensor is 40 Hz. The minimum range of the module is 2 CM while its maximum range is 400 CM. Accuracy of the reading displayed by the module is 3 MM. 15° is the measuring angle covered by the sensor.
