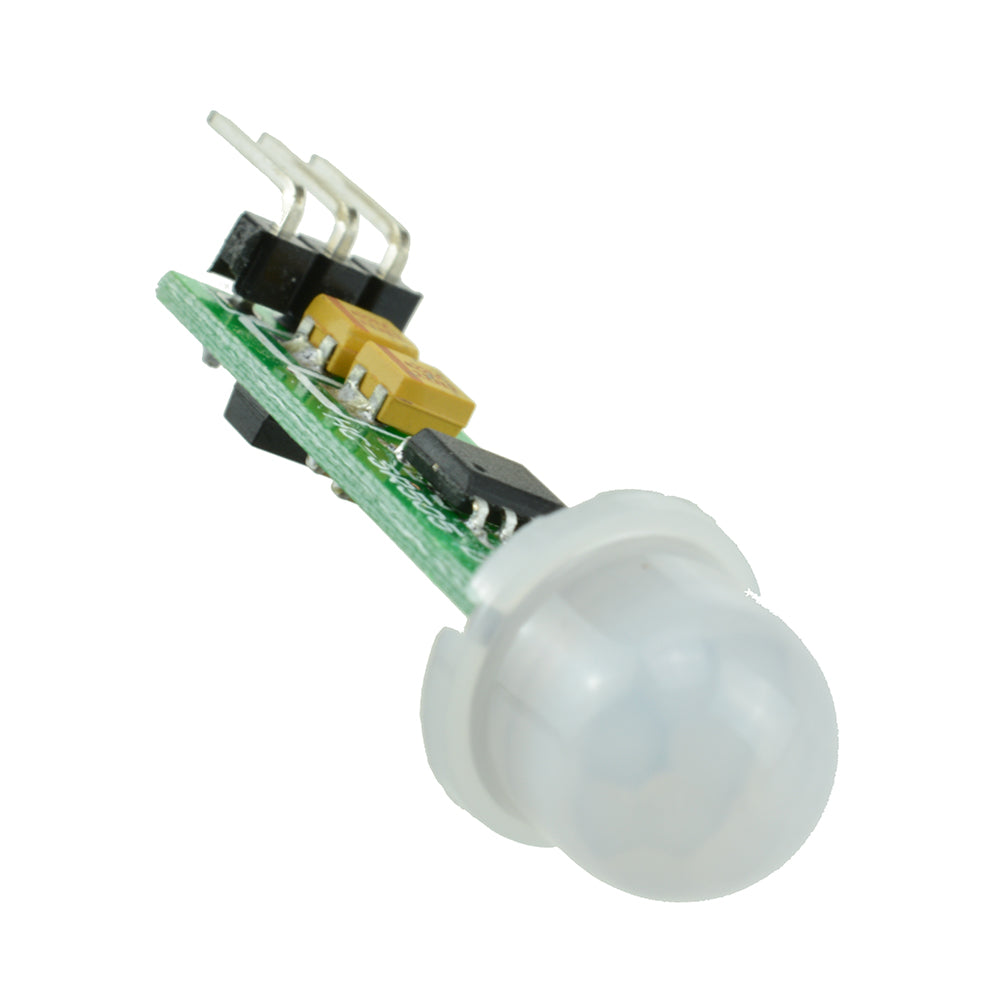

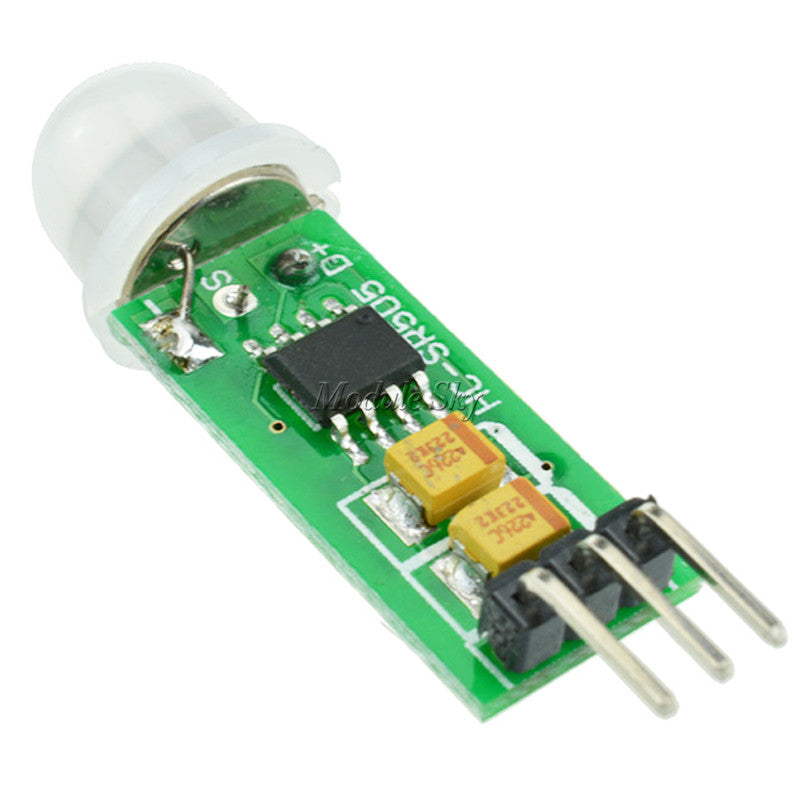

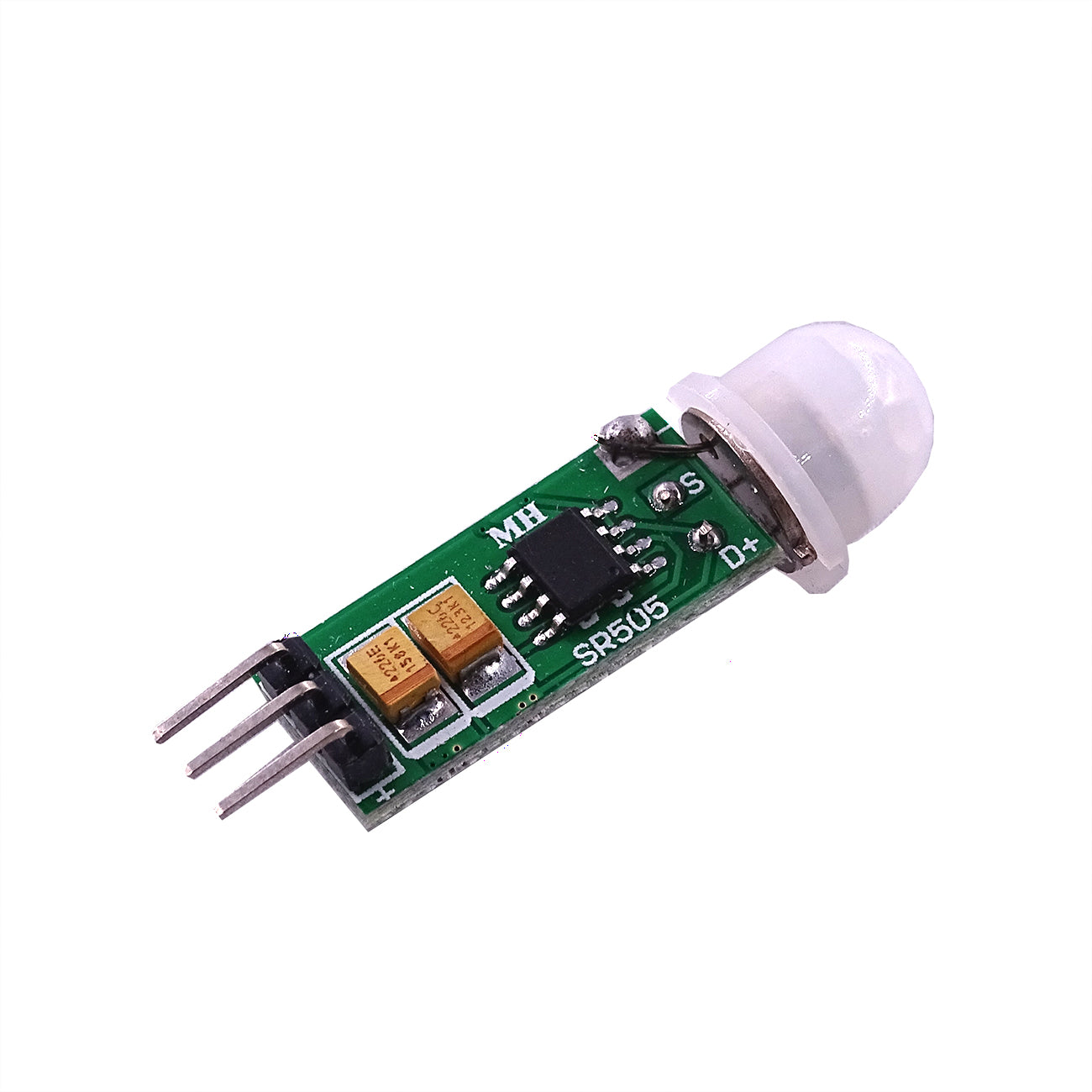

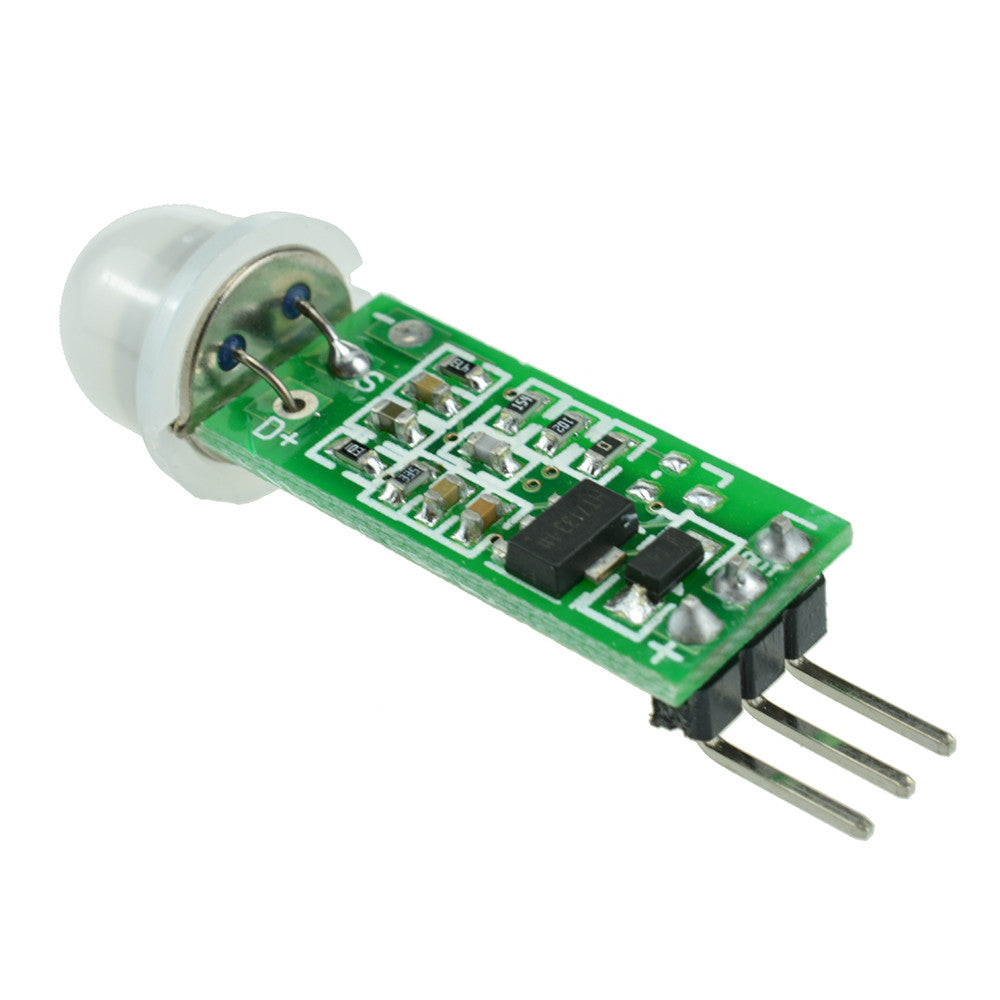

HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module

HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module

Regular price Rs. 96.00
Regular price Sale price Rs. 96.00
Sale Sold out
Tax included. Shipping calculated at checkout.
SPECIFICATION
Model

HC-SR505

Operating Voltage Range

DC4.5-20V

Average Current Consumption (mA)

0.06

Distance Measuring Range

3 meters

Dimensions (mm)

10 x 23 x 5

Weight (gm)

10

Delay time

Default 8S + -30% (can be customized)

Working Temperature Range

-20°C ~ 80°C

Sensor Lens Diameter:

10mm

Induction angle

<100-degree cone angle



Description

  •  It's a HC-SR505 Mini Infrared PIR Motion Sensor. The HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module is based on infrared technology. It automatically controls the products with high sensitivity, high reliability, ultra-small size, and ultra-low-voltage operation mode. It is widely used in various auto-sensing of electrical equipment, especially battery-powered automatic control products.
