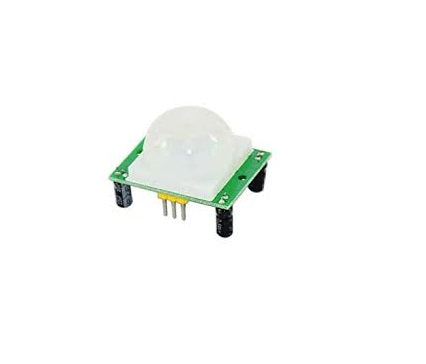

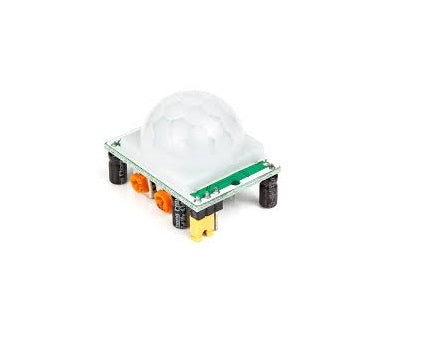

HC-SR501 PIR Motion Sensor Detector

HC-SR501 PIR Motion Sensor Detector

Regular price Rs. 69.00
Regular price Sale price Rs. 69.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Operating Voltage Range:-  DC4.5-20V
  • Average Current Consumption:-  <60uA
  • Distance Measuring Range:-  3 to 7m (can be adjusted)
  • Output Type:-  (High/ Low-level Signal) 3.3V TTL output
  • Detection Angle:-  <140°
  • Delay Time:-  5 to 200s (Can be Adjusted)
  • The PIR Motion Sensor Detector Module HC SR501 allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor’s range. It is often referred to using “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion” sensor.
  • HCSR501 PIR Motion Sensor Detector module is used to detect motion generally, the motion of humans within the range of the sensor. It has three pins i.e., Vcc, Dout (High/Low output) and Ground. This module works on 5V DC hence Vcc is supplied with 5V DC. Dout is an output pin. It gives 0V when idle i.e., no motion is detected. 3.3V is retrieved as output from Dout when it detects motion within the range. The range of the HCSR501 PIR motion sensor is 120° and 7 meters. This module can distinguish between human motion and object motion. Operating temperature of the module ranges from -20°C to 80°C.
