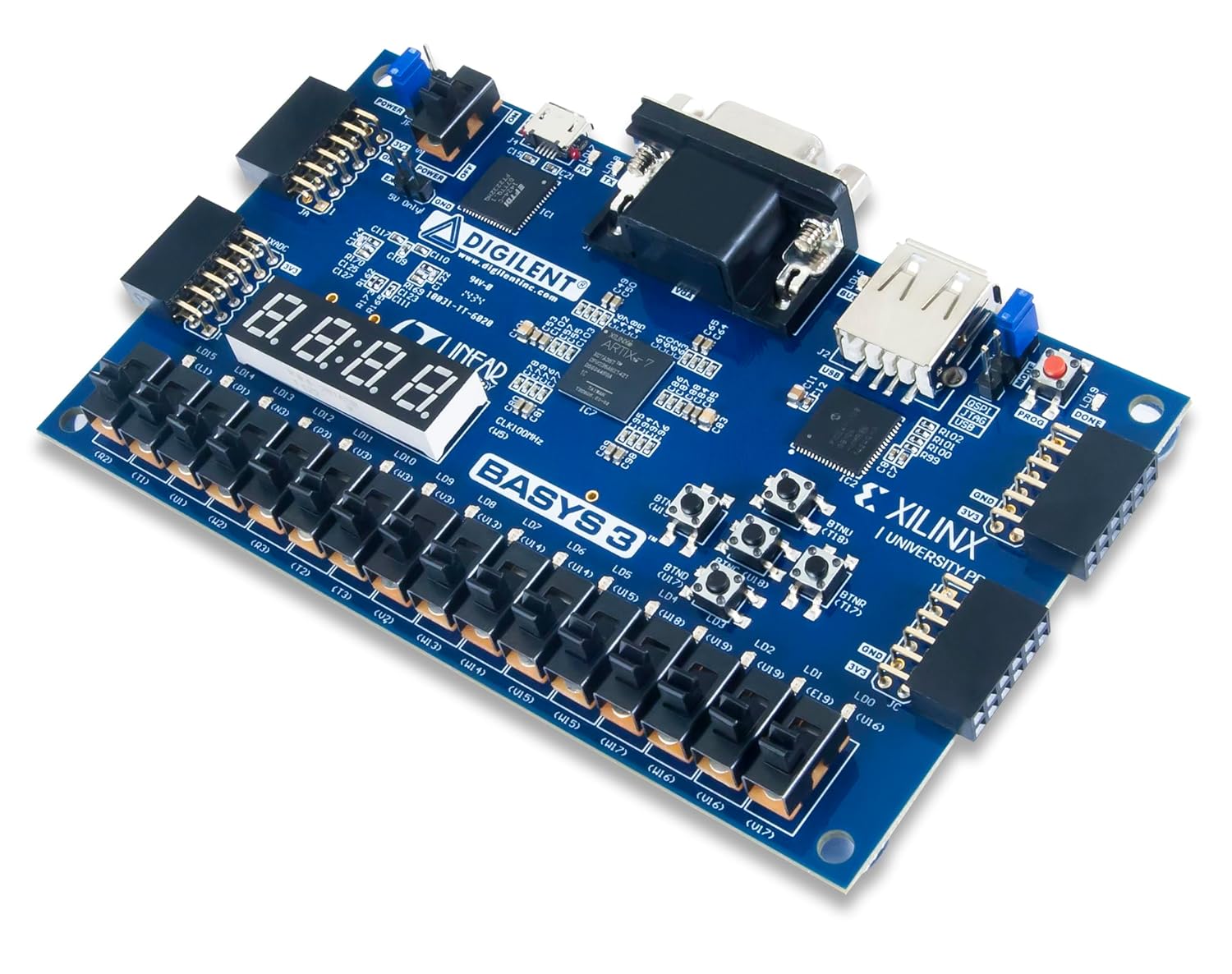

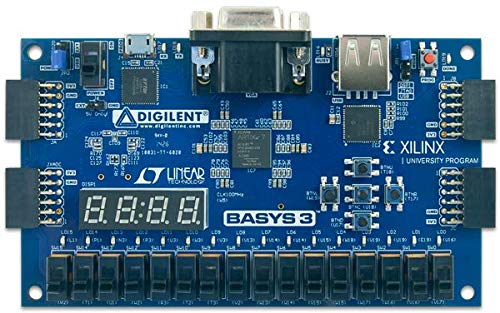

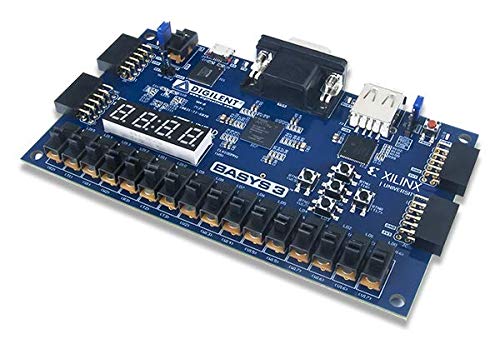

Digilent Basys 3 Artix-7 FPGA Trainer Board
Digilent Basys 3 Artix-7 FPGA Trainer Board
Regular price
Rs. 19,000.00
Regular price
Sale price
Rs. 19,000.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
-
User Interface Hardware
- 16 switches
- 16 LEDs
- 5 push buttons
- 4-digit 7-segment display
-
Connectivity
- USB-JTAG (programming + power)
- USB-UART bridge
- VGA output (12-bit color)
- USB HID (keyboard/mouse support)
-
Expansion
- 4 × PMOD ports
- XADC analog input
| Parameter | Details |
|---|---|
| FPGA | AMD Artix-7 XC7A35T |
| Logic Cells | ~33,280 |
| Block RAM | 1.8 Mb |
| DSP Slices | 90 |
| Clock Speed | >450 MHz internal |
| Programming | USB-JTAG onboard |
| Flash | Onboard configuration memory |
| Toolchain | Vivado (free WebPACK supported) |
