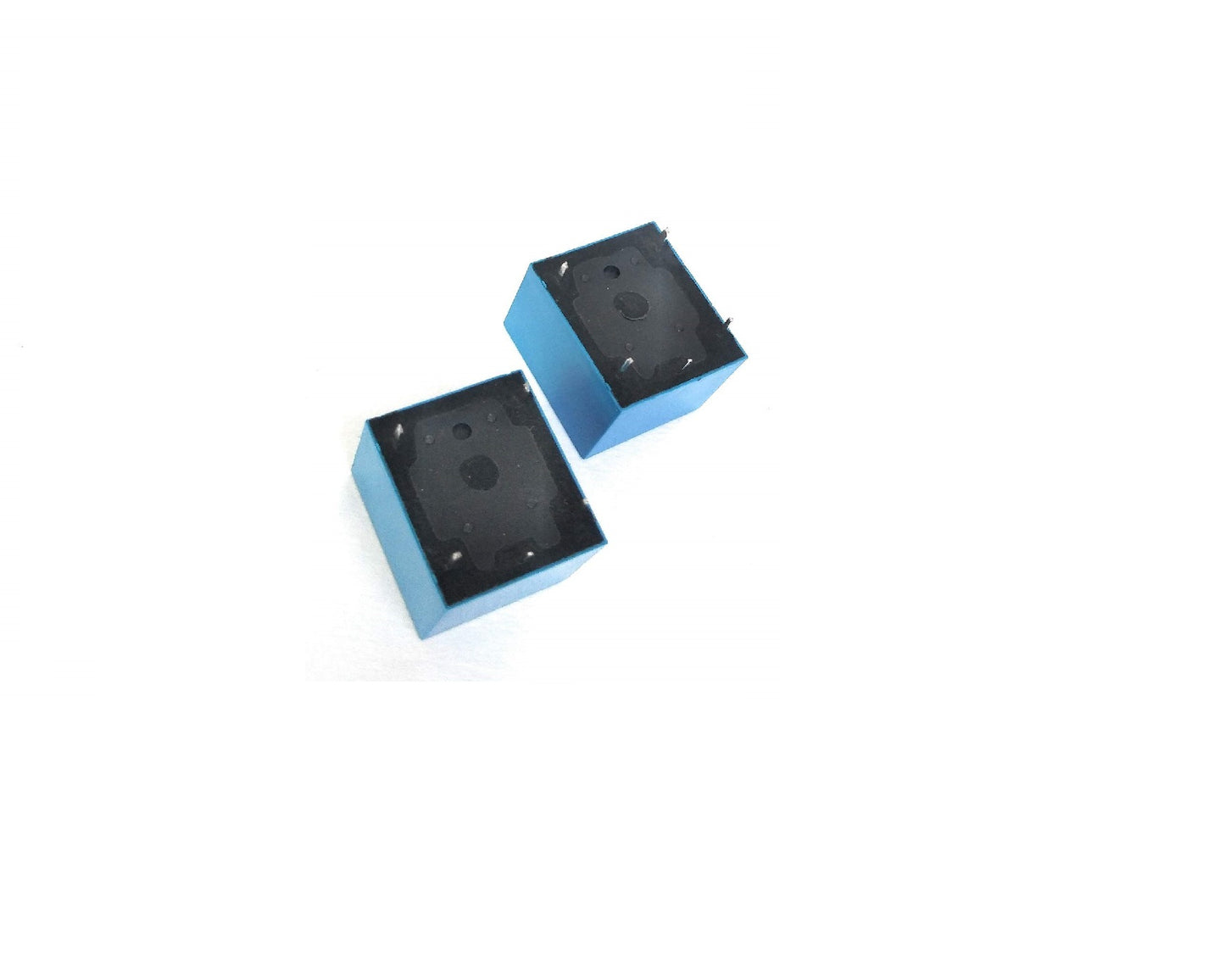

5V 7A Relay DC

5V 7A Relay DC

Rs. 17.00
Rs. 17.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Specifications:-
  • Type:-  SPDT(Single Pole Double Throw) relay
  • Operating Voltage:-  5V
  • Maximum AC load current:-  7A @ 250/ 10A @ 120V AC
  • Trigger Current:-  70mA
Description:-
  • SPDT(Single Pole Double Throw) relay is used as a switch for high current AC/DC appliances which need to be controlled from a microcontroller or sensor output.
  • There are 5 pins in this relay i.e, Coil end 1, Coil end 2, COM(common), NC and NO. Coil end 1 and Coil end 2 are used to trigger ON/OFF the relay. One end is connected to a 5V supply and the other is connected to the ground of the circuit. Common is connected to the one end of the load to be controlled. The other end of the load is connected to either NC or NO. If the load is connected to NC(Normally Closed) then the load remains ON before trigger. And if it is connected to NO(Normally Open) then the load remains OFF before trigger. These relays are usually used in home automation, switching circuits, security circuits, etc.
