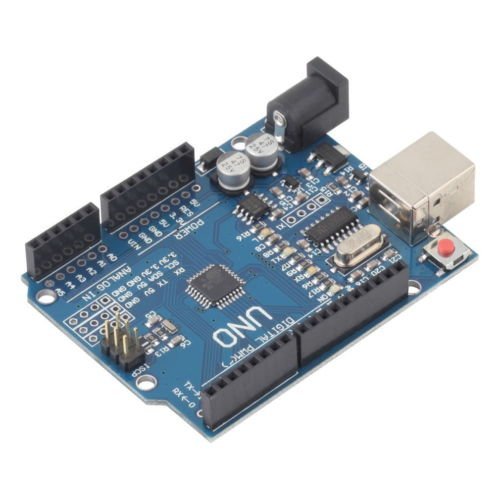

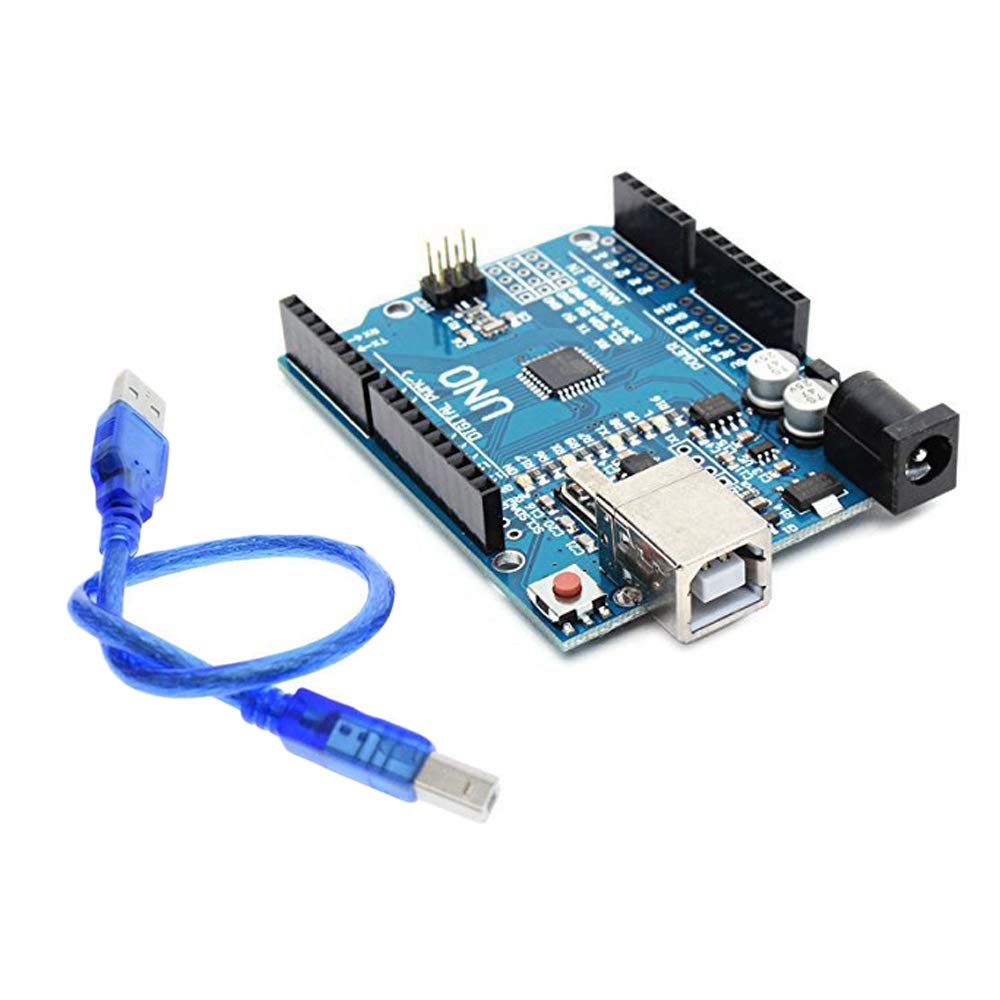

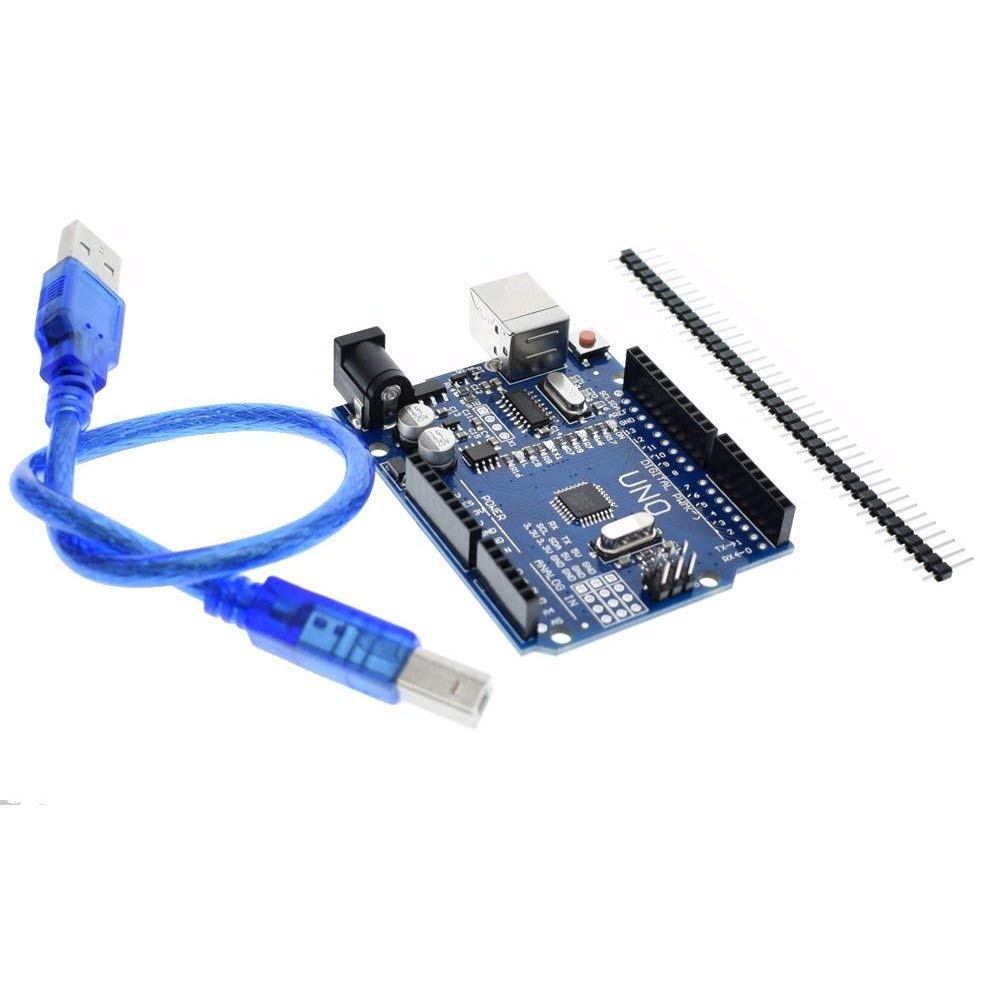

ARDUINO UNO WITH CABLE
ARDUINO UNO WITH CABLE
Couldn't load pickup availability
- A basic Arduino Kit including everything to get started.
- It includes a quality proven Arduino Cable.
- It includes a strong and sturdy Transparent Acrylic Case.
- Microcontroller ATmega328 (SMD) – Interface CH340G
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Digital I / O Pins 14 (of which 6 provide PWM output)
- Analog Input Pins: 6
| Microcontroller Chip |
ATmega328 (SMD) – Interface CH340G |
|---|---|
| Operating Voltage |
5 V |
| Input Voltage(Recommended) |
7-12V |
| Input Voltage (limit) |
6-20V |
| Analog I/O Pins |
6 |
| Digital I/O Pins |
14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins |
6 |
| DC Current for 3.3V Pin |
50 mA |
| DC Current per I/O Pin |
40 mA |
| Clock Speed |
16 MHz |
| SRAM |
2 KB (ATmega328) |
| EEPROM |
1 KB (ATmega328) |
| Flash Memory |
32 KB (ATmega328) of which 0.5 KB used by bootloader |
| Power Supply Option |
DC Jack or USB |
| On Board LEDs |
On/Off, L (PIN 13), TX, RX |
| Operating Temperature (°C) |
-40 to +90 |
