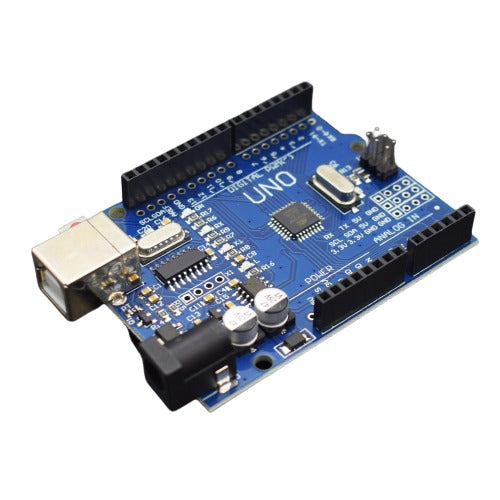

Arduino UNO R3 SMD Controller

Arduino UNO R3 SMD Controller

Regular price Rs. 899.00
Regular price Sale price Rs. 899.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Specification:-
  • Microcontroller Chip:-  ATmega328 (SMD) – Interface CH340G
  • Power Supply Option:-  DC Jack or USB
  • Operating Voltage:-  5 V
  • Input Voltage(Recommended):-  7-12V
  • Analog I/O Pins:-  6
  • Digital I/O Pins:-  14 (of which 6 provide PWM output)
  • PWM Digital I/O Pins:-  6
  • Clock Speed:-  16 MHz
  • SRAM:-  2 KB (ATmega328)
  • EEPROM:-  1 KB (ATmega328)
  • Flash Memory:-  32 KB (ATmega328) of which 0.5 KB used by bootloader
  • On Board LEDs:-  On/Off, L (PIN 13), TX, RX
Description:-
  • The Arduino Uno is an open-source microcontroller board based on the Microchip ATmega328P
  • The board is equipped with sets of digital and analog input/output pins that may be interfaced to various expansion boards and other circuits.
  • Operating voltage 5v input voltage (recommended) 7-12v and input voltage (limits) 6-20v digital i/o pins 14 (of which 6 provide pwm output) and analog input pins 6 dc current per i/o pin 40 ma and dc current for 3. 3V pin 50 ma flash memory 32 kb (atmega328) of which 0. 5 Kb used by bootloader.
