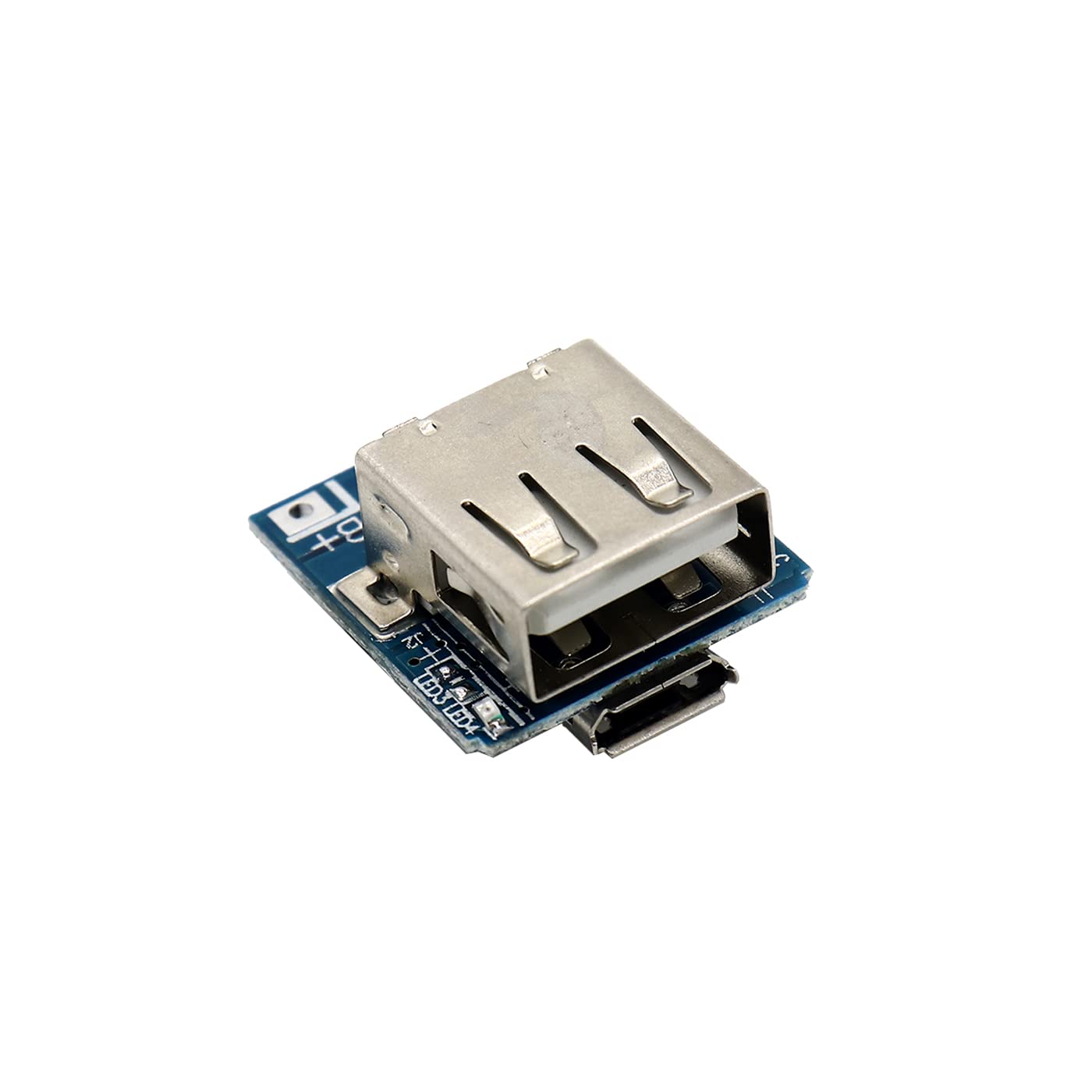

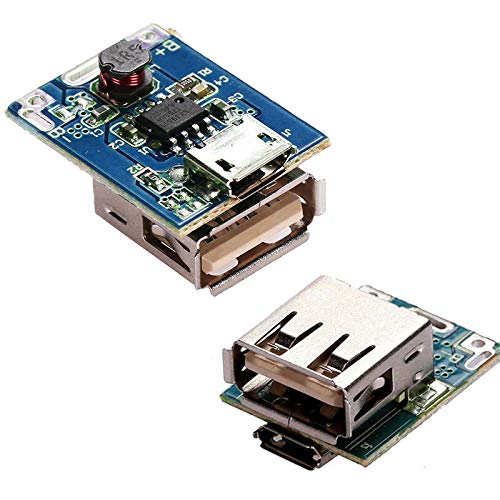

5V Micro USB Input for Charging 3.7V POWERBANK MODULE
5V Micro USB Input for Charging 3.7V POWERBANK MODULE
Regular price
Rs. 149.00
Regular price
Sale price
Rs. 149.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- DESIGENED for 18650 battery DIY power bank: It is designed to charge 18650 3.7V lithium ion(li-ion) or lithium polymer (lipo) rechargeable batteries. AA, AAA, Nickle metal hydride rechargeable batteries or old batteries of different capacities are not directly compatible; chargeable batteries should be at least 3.5V (It also support lithium mobile phone battery and tablet battery).
- CONNECTION : It is possible to connect only one lithium battery or multiple lithium batteries in parallel. The capacity of connected battery should not exceed 10000 mAh, As long as the battery with a voltage of 3.5-4.2V is used.

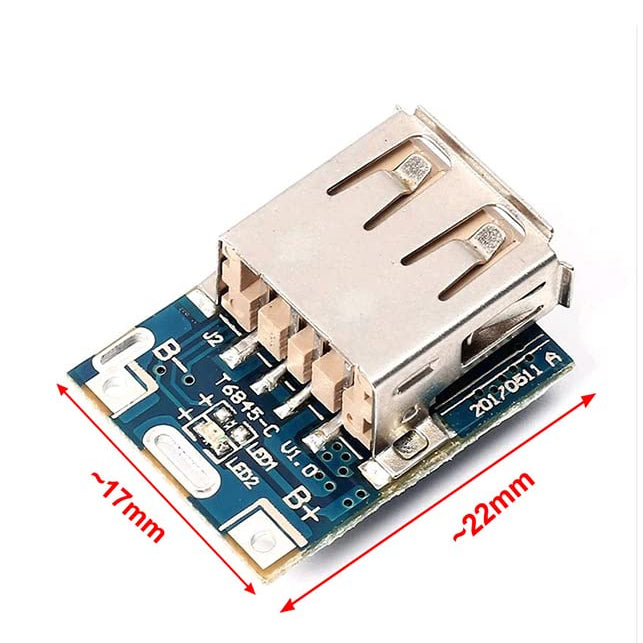

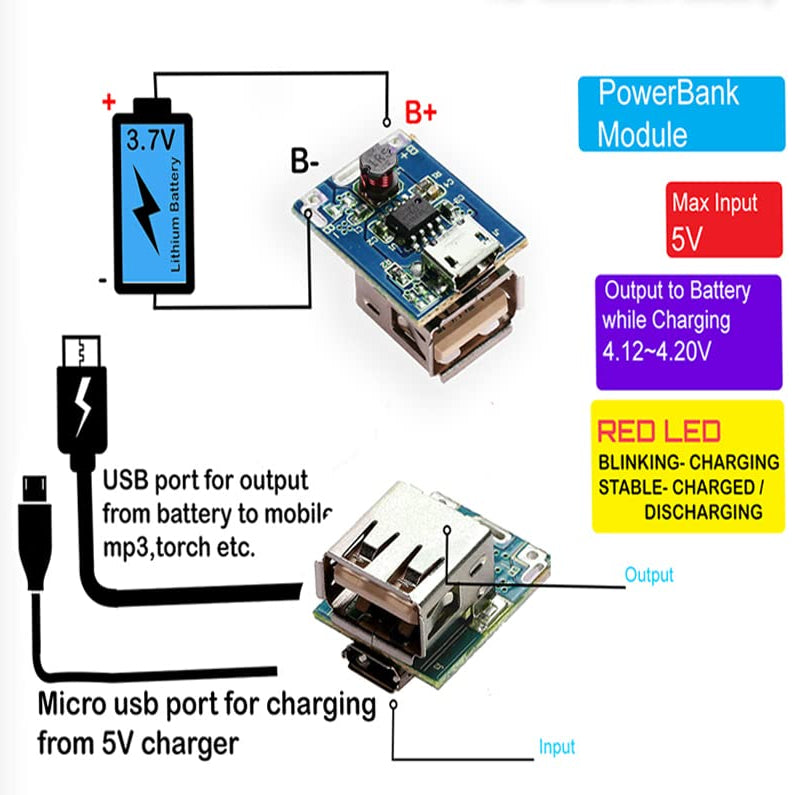

- TERMINAL indication of this power bank pcb board: B+ is for battery positive terminal B- is for battery negative terminal. Input voltage:5V 1A or 5V 2A Note: The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will damage the circuit.
- PROTECTION Function: This is a mobile powerbank module with protection circuit of the boosted lithium battery has been integrated, prevent over-discharge, over-charge, overload short circuit protection, over current protection, and over temperature protection.
- APPLICATION: Compatible For major mobile Phone and tablet and other cellphones. Application - Suitable for various models of mobile phones that support wireless charging function. Also can be used in DIY project like flash light , torches, relays, buzzer, sensor, robotic projects, wireless and compatible with other modules also like tp4056, tpa 4056, lm2596, xl6009, mt3608, Peltier,bike phone charger.
