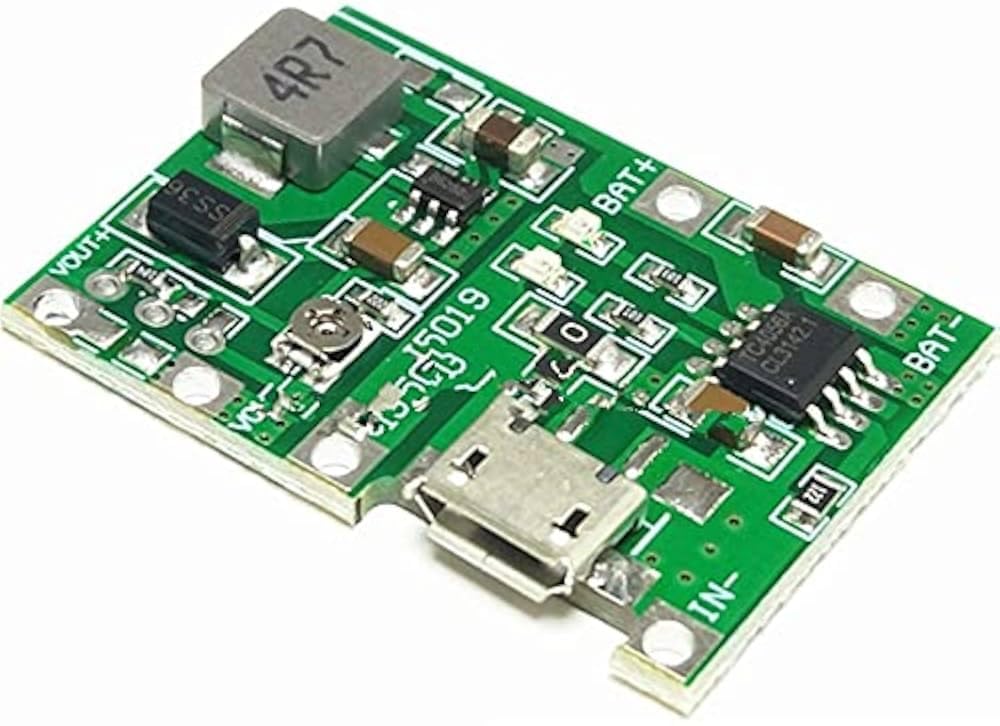

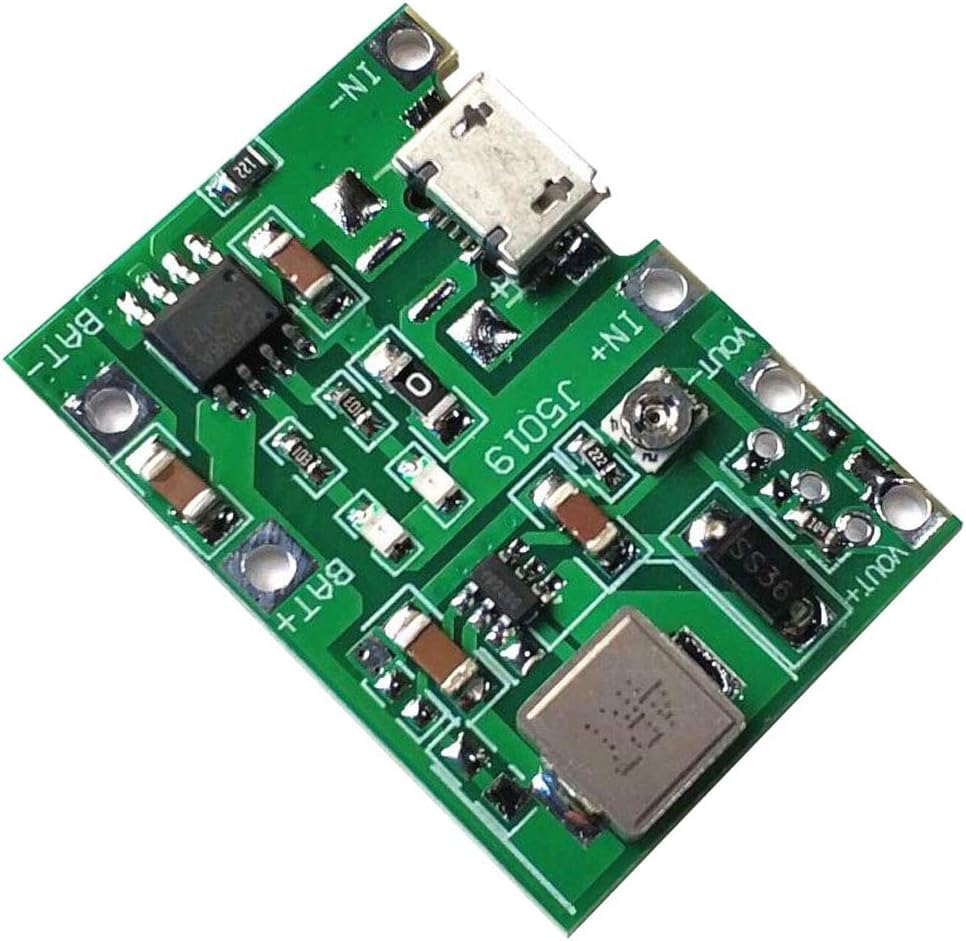

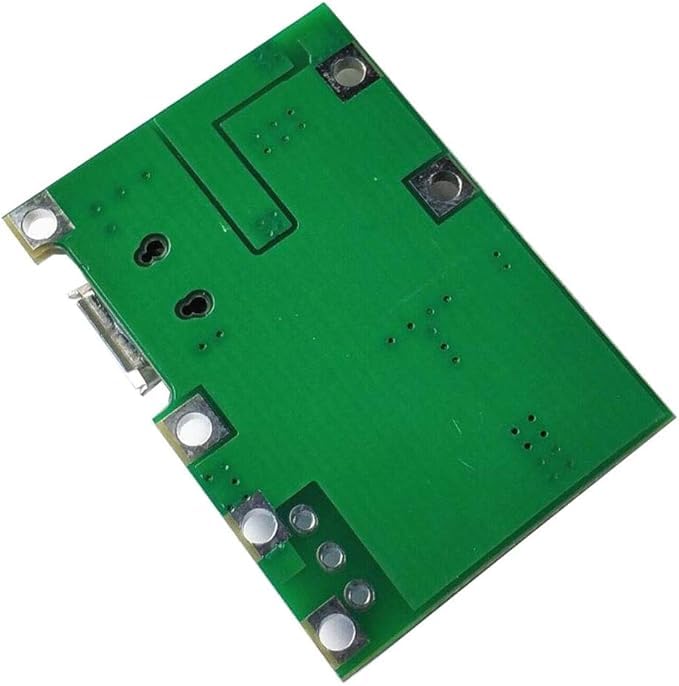

3.7V to 9V 5V 2A Multimeter Modified 18650 Lithium Battery Charge Boost and Discharge Integrated Adjustable Module(Type C)
3.7V to 9V 5V 2A Multimeter Modified 18650 Lithium Battery Charge Boost and Discharge Integrated Adjustable Module(Type C)
Regular price
Rs. 99.00
Regular price
Sale price
Rs. 99.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Debug before use, the default output is about 9V; Input voltage 4.5-8V
- Continuously adjustable output voltage 4.3-27V; Charging voltage 4.2V Charging current Max 1A
- Discharge current Maximum 2A output current must be calculated by yourself
- Output reference maximum current 5V 1.4A, 9V 0.8A, 12V 0.6A; Quiescent current is about 0.5 mA
- Overcharge protection.Over-discharge protection None (it can also be said to have, 2V cut-off boost
