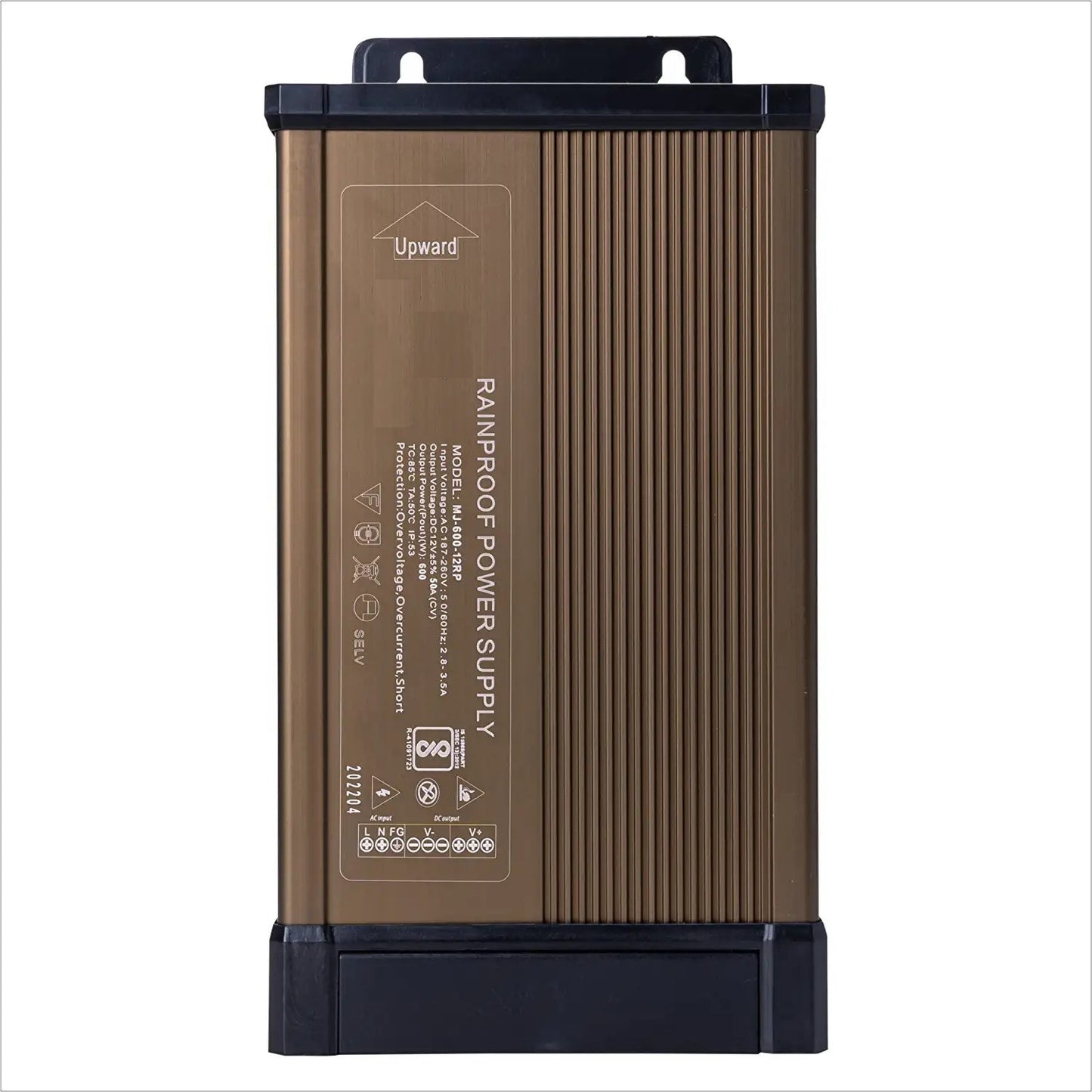

12V 50A Rainproof Power Supply

12V 50A Rainproof Power Supply

Rs. 1,799.00
Rs. 1,799.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Specification:-
  • Power:-  600W
  • Type:-  AC to DC
  • Input Voltage:-  110-220 AC, 50/60Hz
  • Output Voltage:-  12VDC
  • Output Current:-  50amp
  • Output voltage: Adjustment Range: ±10%

Description:-

  • High quality Switch Power Supply, Widely used in Industrial automation, LED display, etc. With anti-jamming to ensures the long life LED lamps and reduce the LED luminous decay
  • Universal AC input / Full range. The input voltage: AC 220V/240V, the output 12 VOLT
  • Smart device surge protection for Shortage, Overload, Over Voltage
  • Dual input voltage: AC 220V. There is a switch, choose the proper voltage before use
  • 100% full load burn-in test .Cooling by Fan/free air convection.

src=https://brightelectroniccomponents.com/wp-content/uploads/2022/09/12v-50a-Power-supply-600w-power-supply-rainproof-power-supply-12v-power-supply-50a-power-supply-1.jpg-3.webp

HOW TO CONNECT WIRING

  • Input wire has to be connected L & N point, if there is an earthing wire then you can also use that.
  • Check whether the led light on.
  • Put v- negative wire at the output point (wire color can be black), then you put positive wire on v+, (the color of the wire can be red)
  • Connection:- L: FireWire, N: zero line, G: ground wire, - V: load negative, + V: load positive
